The marrying of the 68RFE transmission in a Dodge is almost as important as the marrying of a Cummins in a Dodge. For YEARS, Dodge has put lackluster transmissions behind the Cummins powerhouse, and have regrettably developed a poor reputation for it. When the 2007.5 6.7L was released, it came featuring the 68RFE, and it was proven to be a good choice. This new six speed automatic has proven itself to be able to handle a TON more abuse compared to its predecessors. But with any transmission, it has its limitations.

There are many of those whom have already pushed the limits of their transmission with performance enhancements and hauling heavy loads that know all too well how much is too much for the 68RFE. BD transmissions are designed to take on what most 68RFE owners are looking for - responding with smooth sharp shifts to keep the engine in the torque range required.

BD has done extensive research to determine the failure points of the 68RFE and to correct them. For instance, BD's 68RFE pumps have a new regulator valve design, and along with a new valve body separator plate and pressure control module, can deliver up to 250 PSI clutch apply pressure. This provides 150% MORE holding force above stock, in order to help prevent clutch slippage. Also, BD's 68RFE Electronic Pressure Controller dynamically adjusts the hydraulic apply pressures based on APPS, which is used in governing engine loads and responsiveness through transmission gear selection. the module's dynamic control ramps up in the much larger sweep right up to 250 PSI mainline pressure as needed dynamically. This is NOT accomplished with any other aftermarket engine tuner.

All the clutch packs and drums have new machined designs with the maximum amount of heat/energy/capacity in mind. Special machining has been done to the second gear piston to incorporate additional thick as stock clutch fiber and steel plates. The fourth gear apply piston has been modified to accept new heavier BILLET retainer and a steel girdle is applied to strengthen the piston and give a broader apply area.

The low and reverse sprag clutch with dog-bone style dawgs that bind and wedge themselves into destruction are also replaced with a BD EXCLUSIVE, heavy duty constructed cam and roller style one-way clutch, preventing these explosive failures.

Each transmission is dyno tested and comes with BD's heavy duty deep sump aluminum transmission pan to add strength to the case preventing flexing and internal oil leakage.

BD has also matched their proven ProForce Converter to this application. It features a billet forged front cover with thicker walls and stronger mounting pads, 11.625 inch dual clutch, cast aluminum stator, and furnace brazed turbine fins for improved fluid coupling efficiency.

SHIPPING POLICY - Due to the size and weight of transmissions, they cannot be shipped through traditional couriers, such as UPS, FedEx, USPS, etc. and MUST be shipped via truck freight. We do not offer free shipping on transmissions, however, we do offer a very competitive rate charged at checkout. Once your core transmission is ready for pick up, you just need to give us a call or send us an e-mail with your original order number and the core tag on the transmission, and we can supply you with a quote on the return shipping as that is not covered in the original shipping cost. Otherwise, we give you the option to coordinate the return shipping on your own and independently pay your courier of choice. As always, if you have any questions, give us a call or send us an e-mail.

2009 Duramax Build by Adan

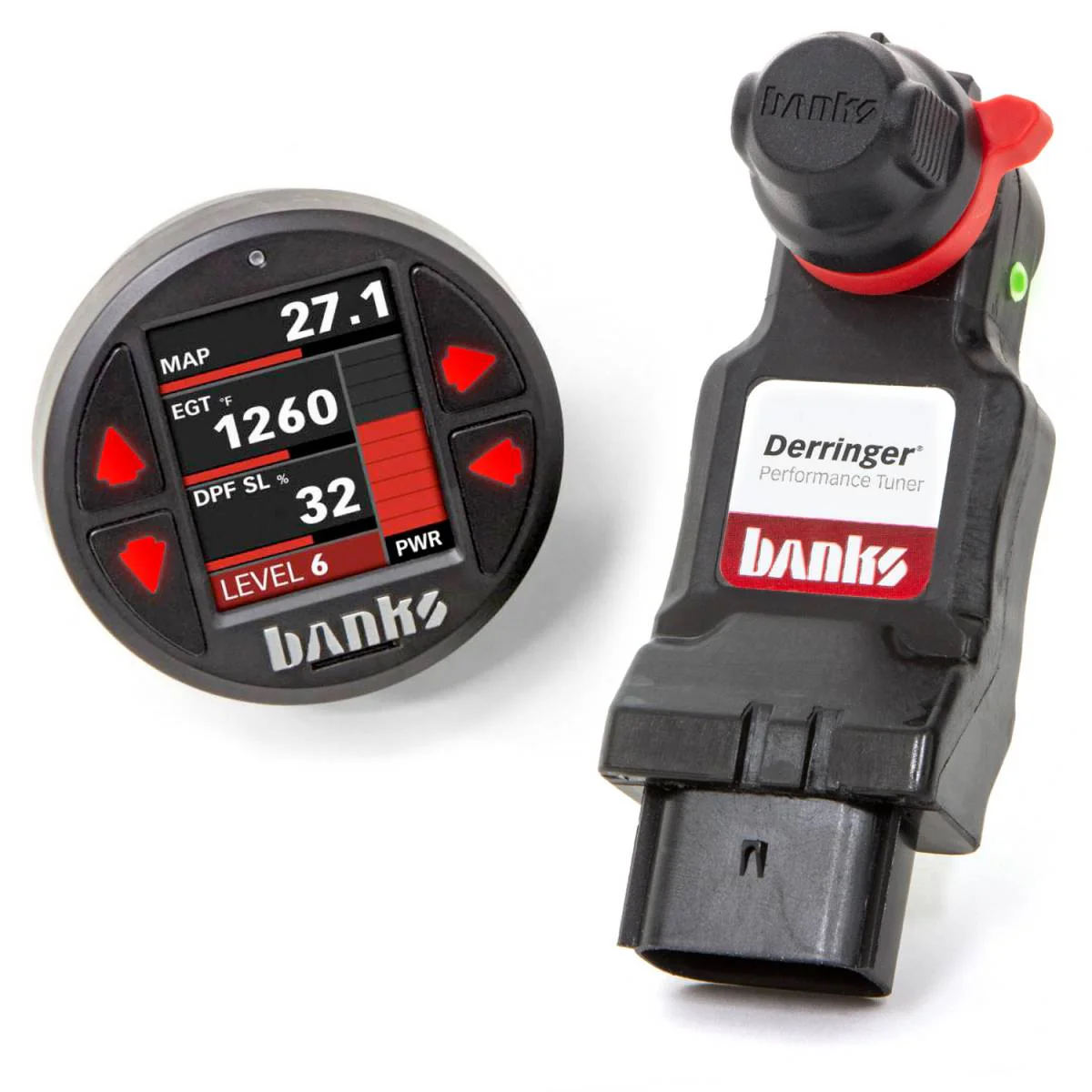

Banks Power 66681 Derringer Tuner with iDash 1.8 14-18 3.0L Ram 1500 EcoDiesel

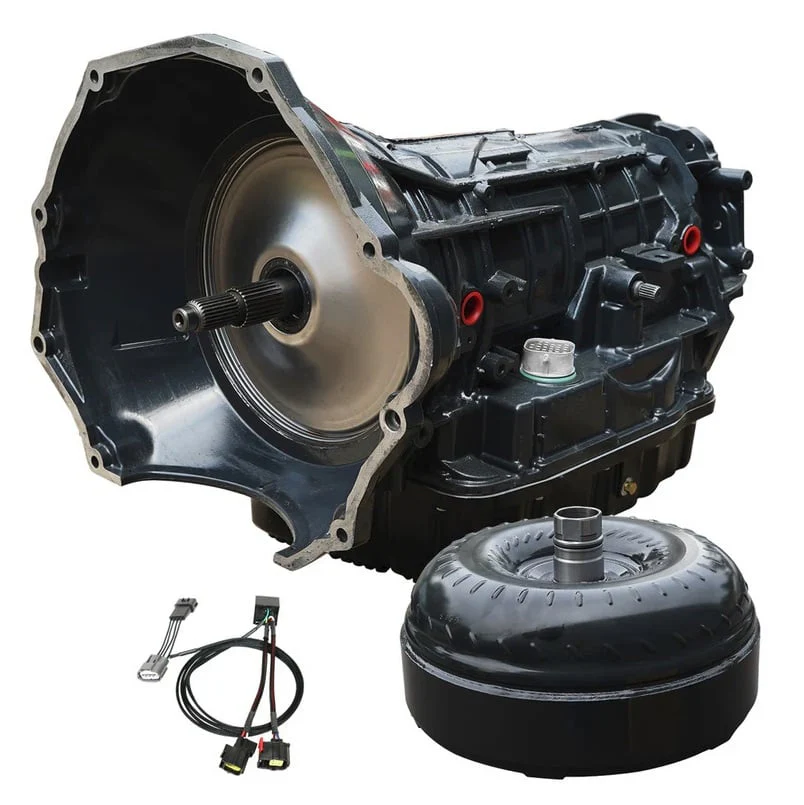

BD TowMaster 68RFE Transmission & Converter Package 07.5-18 Dodge 6.7L Cummins 4WD
