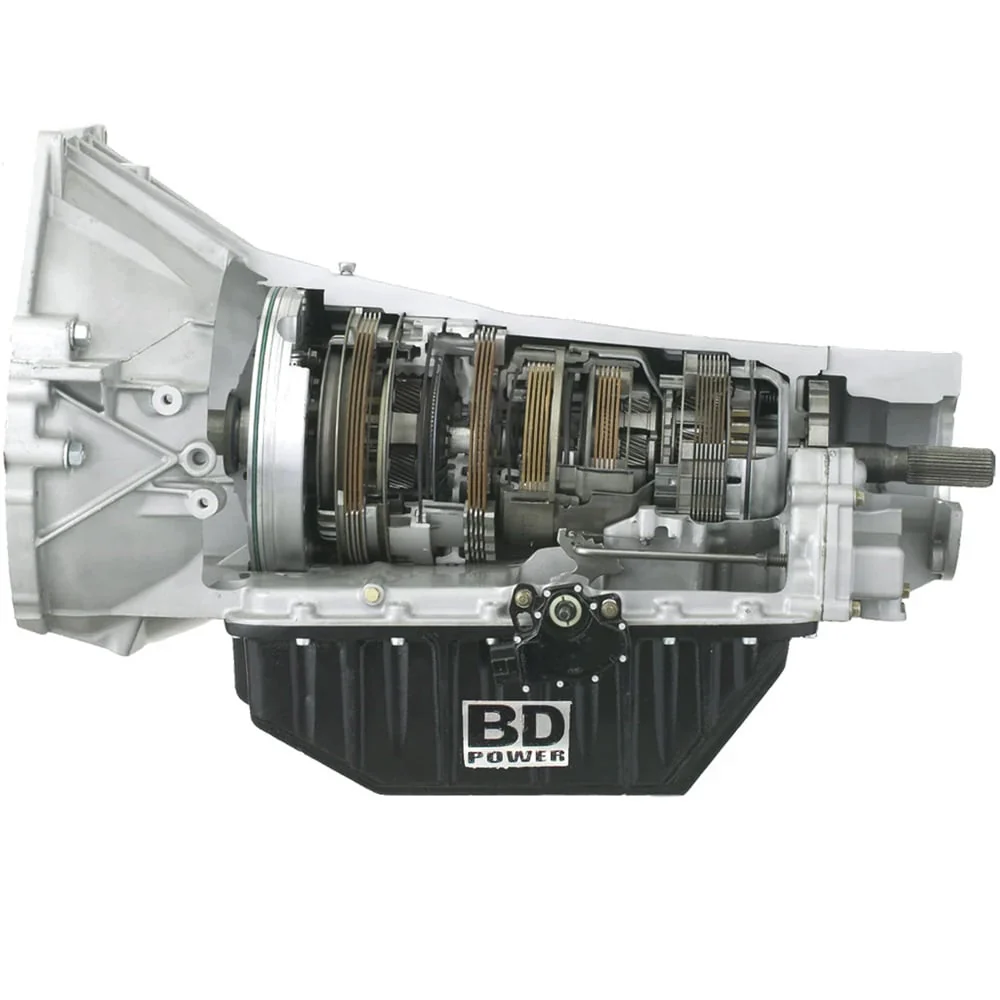

BD Performance 5R110 Transmission 05-07 6.0L Ford Powerstroke BD1064482 / 1064484
From street and towing to full race, BD builds them best! To some it is a challenge to simply disassemble and assemble a Ford transmission. For BD, the challenge was to improve the durability and performance of these transmissions in demanding, high-torque diesel applications.
The smooth shifting associated with the stock Ford transmission is the result of slippage that produces heat and accelerates wear. BD transmission and converter clutches are made from specialized, high-performance materials, and 33% more clutch surface is added to eliminate slippage.
A re-programmed valve body with improved valve designs, higher line pressure and enhanced oil flow creates positive clutch apply, which results in quick, sharp shifts. A BD deep-sump aluminum pan is also fitted, which increases oil capacity for cooler operation. The planetary gear packs are made from high-strength steel, and heavy-duty, one-way roller Sprague clutches maintain directional stability, unlike the stock or inferior aftermarket products, which can explode.
Finally, each transmission's shift pattern and oil pressure is tested on our transmission dynamometer, then shipped to you in a virtually indestructible molded plastic container. For ultimate strength and reliability, we recommend you match your new BD transmission with a TorqForce performance torque converter.
TRANSMISSION DETAILS:- BD rigid aluminum heavy duty transmission pan
- Adds 6qt extra oil capacity
- Reduces case flex
- Reduces internal oil leakage
- Heat-dissipating fins keep temperature down
- Magnetic drain plug
- Tighter clutch packs that provide a quicker shift
- 30%-40% more clutch material with additional steels
- Machined direct piston
- Machined intermediate pressure plate
- Machined overdrive piston
- Machined overdrive pressure plate
- Improved internal lubrication by adding high power boost valves
- Heavy duty snap ring and blow-off valve to prevent runaway pressure damaging case
- Reworked front pump
- Added lube circuits
- Heavy duty regulator valve to prevent crossleaks
- Improved bearing designs
- Upgrade supports
- Upgraded sprags
- Upgraded planetaries
- Sure-loc snap rings
- Replace plastic pressure plugs in valve body with aluminum
- Solenoids hard wired providing high temperature resistance
| 5R110 Clutch Count | ||
|---|---|---|
| Clutch | Stock | BD |
| Coast Clutch | 3 | 3 |
| Forward | 4 | 3 |
| Direct | 4 | 6 |
| Low Reverse | 6 | 6 |
| Intermediate | 3 | 5 |
| Overdrive | 3 | 5 |
SHIPPING POLICY - Due to the size and weight of transmissions, they cannot be shipped through traditional couriers, such as UPS, FedEx, USPS, etc. and MUST be shipped via truck freight. We do not offer free shipping on transmissions, however, we do offer a very competitive rate charged at checkout. Once your core transmission is ready for pick up, you just need to give us a call or send us an e-mail with your original order number and the core tag on the transmission, and we can supply you with a quote on the return shipping as that is not covered in the original shipping cost. Otherwise, we give you the option to coordinate the return shipping on your own and independently pay your courier of choice. As always, if you have any questions, give us a call or send us an e-mail.
IMPORTANT NOTE: Torque converter is not included with this transmission package.
