BDS Suspension 5" 4-Link Lift Kit Coilover Conversion 23-26 Ford F-250/F-350 Superduty 4WD

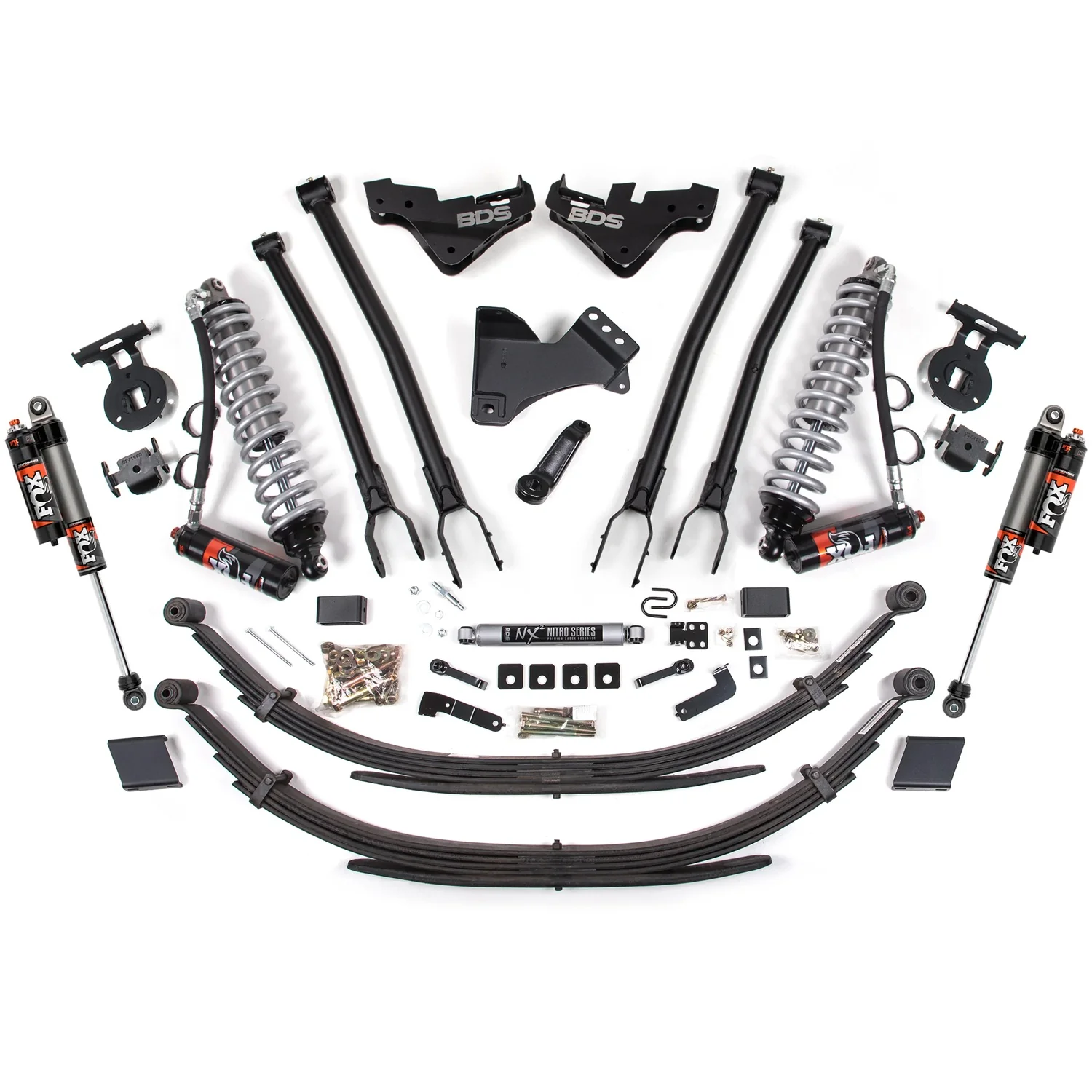

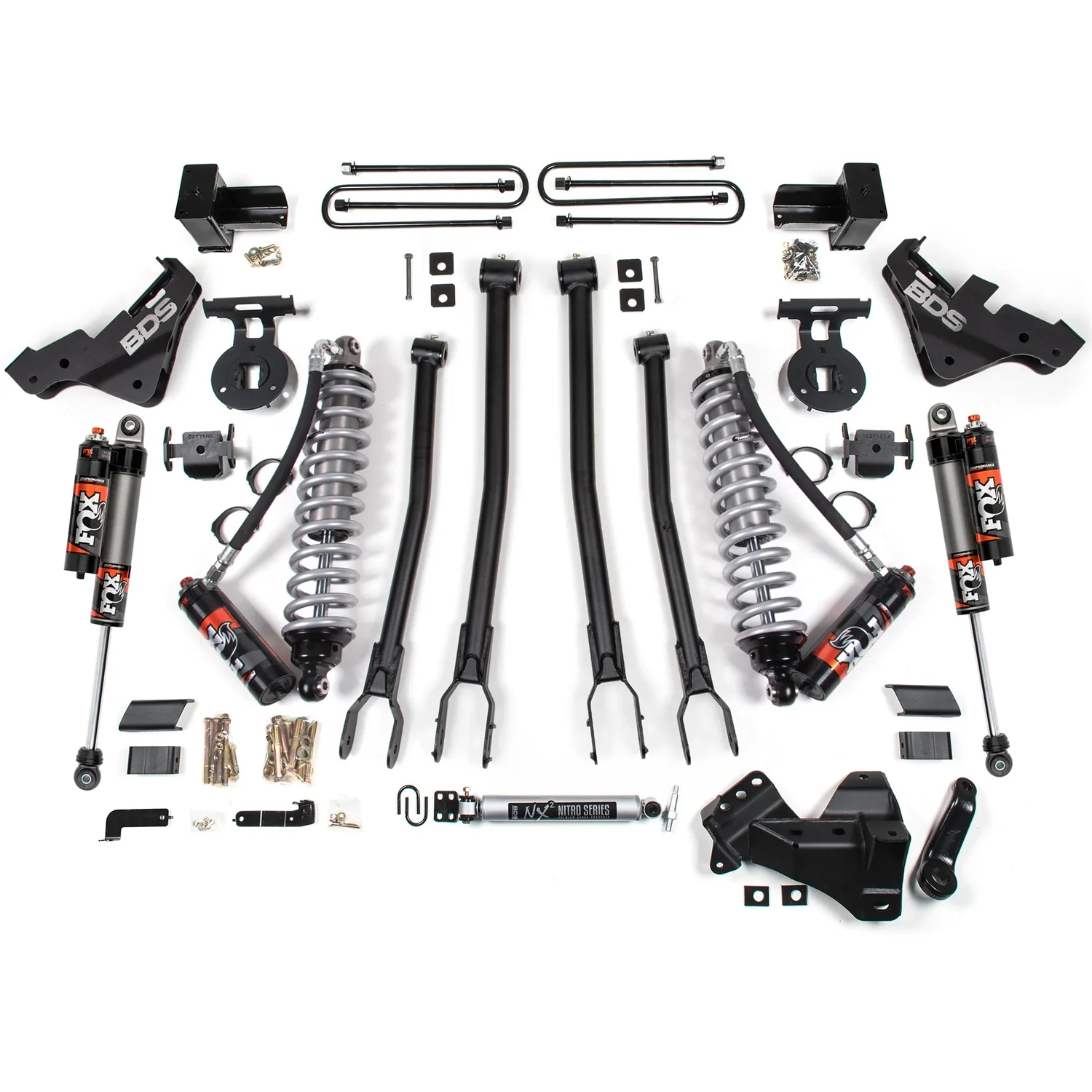

Need to elevate your driving experience with an upgrade in both height and drivability? Take your Ford F-250 or F-350 Superduty diesel to the next level with the BDS 5" 4-Link Lift Kit with FOX 2.5 Performance Elite Coil-Over Conversion. Designed for maximum performance, improved ride quality, and aggressive stance, this premium suspension system converts your factory radius arm setup into a true 4-link configuration delivering superior handling, stability, and articulation.
True 4-Link Suspension Upgrade
This system replaces the factory radius arms with a heavy-duty 4-link design, improving suspension geometry and reducing bind throughout travel. By maintaining more consistent caster angles, the 4-link system enhances steering feel, stability, and control when under load or during aggressive driving.
The bolt-on conversion utilizes high-strength steel brackets and control arms to properly position the axle while improving overall drivability and suspension performance.
Rear Lift Options:
- Block Kit: High-strength fabricated blocks for proper pinion angle and leveling
- Leaf Spring Upgrade: Eliminates lift blocks, reduces axle wrap, and improves ride control
Shock Options:
- FOX 2.0 Performance Series Shocks FOX 2.0 performance series shocks have been tuned and tested by both FOX and BDS Suspension to maximize performance specific to each application and every BDS Suspension system. The Internal Floating Piston (IFP) shock design is based on proven Fox Racing Shocks race products but re-designed to maximize the ride quality, handling, and control of your BDS equipped truck, whether on or off the road.
- FOX 2.5 Performance Elite Series Need to kick your suspension up another notch? The FOX 2.5 Performance Elite Series greatly expands your off-road capabilities and how much punishment your shocks can take. Made with external reservoirs to keep your shock oil away from high stress and higher temperatures, the elite series shocks are part of a suspension that will handle whatever you throw at it. Comes with easy adjustments to switch between different terrains, load and speed. Dual Speed Compression Adjuster comes standard.
Tire & Wheel Fitment
- Up to 37 x 12.50 tires (trimming may be required)
- 17x9 or 20x9 wheels with 5" backspacing recommended
Product Information
Product Information
Shipping & Returns
Shipping & Returns
BDS Suspension 5" 4-Link Lift Kit Coilover Conversion 23-26 Ford F-250/F-350 Superduty 4WD
BDS Suspension 5" 4-Link Lift Kit Coilover Conversion 23-26 Ford F-250/F-350 Superduty 4WD
Need to elevate your driving experience with an upgrade in both height and drivability? Take your Ford F-250 or F-350 Superduty diesel to the next level with the BDS 5" 4-Link Lift Kit with FOX 2.5 Performance Elite Coil-Over Conversion. Designed for maximum performance, improved ride quality, and aggressive stance, this premium suspension system converts your factory radius arm setup into a true 4-link configuration delivering superior handling, stability, and articulation.
True 4-Link Suspension Upgrade
This system replaces the factory radius arms with a heavy-duty 4-link design, improving suspension geometry and reducing bind throughout travel. By maintaining more consistent caster angles, the 4-link system enhances steering feel, stability, and control when under load or during aggressive driving.
The bolt-on conversion utilizes high-strength steel brackets and control arms to properly position the axle while improving overall drivability and suspension performance.
Rear Lift Options:
- Block Kit: High-strength fabricated blocks for proper pinion angle and leveling
- Leaf Spring Upgrade: Eliminates lift blocks, reduces axle wrap, and improves ride control
Shock Options:
- FOX 2.0 Performance Series Shocks FOX 2.0 performance series shocks have been tuned and tested by both FOX and BDS Suspension to maximize performance specific to each application and every BDS Suspension system. The Internal Floating Piston (IFP) shock design is based on proven Fox Racing Shocks race products but re-designed to maximize the ride quality, handling, and control of your BDS equipped truck, whether on or off the road.
- FOX 2.5 Performance Elite Series Need to kick your suspension up another notch? The FOX 2.5 Performance Elite Series greatly expands your off-road capabilities and how much punishment your shocks can take. Made with external reservoirs to keep your shock oil away from high stress and higher temperatures, the elite series shocks are part of a suspension that will handle whatever you throw at it. Comes with easy adjustments to switch between different terrains, load and speed. Dual Speed Compression Adjuster comes standard.
Tire & Wheel Fitment
- Up to 37 x 12.50 tires (trimming may be required)
- 17x9 or 20x9 wheels with 5" backspacing recommended
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Need to elevate your driving experience with an upgrade in both height and drivability? Take your Ford F-250 or F-350 Superduty diesel to the next level with the BDS 5" 4-Link Lift Kit with FOX 2.5 Performance Elite Coil-Over Conversion. Designed for maximum performance, improved ride quality, and aggressive stance, this premium suspension system converts your factory radius arm setup into a true 4-link configuration delivering superior handling, stability, and articulation.
True 4-Link Suspension Upgrade
This system replaces the factory radius arms with a heavy-duty 4-link design, improving suspension geometry and reducing bind throughout travel. By maintaining more consistent caster angles, the 4-link system enhances steering feel, stability, and control when under load or during aggressive driving.
The bolt-on conversion utilizes high-strength steel brackets and control arms to properly position the axle while improving overall drivability and suspension performance.
Rear Lift Options:
- Block Kit: High-strength fabricated blocks for proper pinion angle and leveling
- Leaf Spring Upgrade: Eliminates lift blocks, reduces axle wrap, and improves ride control
Shock Options:
- FOX 2.0 Performance Series Shocks FOX 2.0 performance series shocks have been tuned and tested by both FOX and BDS Suspension to maximize performance specific to each application and every BDS Suspension system. The Internal Floating Piston (IFP) shock design is based on proven Fox Racing Shocks race products but re-designed to maximize the ride quality, handling, and control of your BDS equipped truck, whether on or off the road.
- FOX 2.5 Performance Elite Series Need to kick your suspension up another notch? The FOX 2.5 Performance Elite Series greatly expands your off-road capabilities and how much punishment your shocks can take. Made with external reservoirs to keep your shock oil away from high stress and higher temperatures, the elite series shocks are part of a suspension that will handle whatever you throw at it. Comes with easy adjustments to switch between different terrains, load and speed. Dual Speed Compression Adjuster comes standard.
Tire & Wheel Fitment
- Up to 37 x 12.50 tires (trimming may be required)
- 17x9 or 20x9 wheels with 5" backspacing recommended
