The FASS Connect Digital Monitoring System was designed for a simple, clean installation and gives you the ability to monitor your FASS Fuel System’s filter life, fuel pressure, and other drivetrain parameters using powerful wireless technology. The system features 5 sensor inputs that support a 0–100 PSI pressure sensor, a -40° to 260° temperature sensor, and a 2,000° exhaust gas temperature sensor.

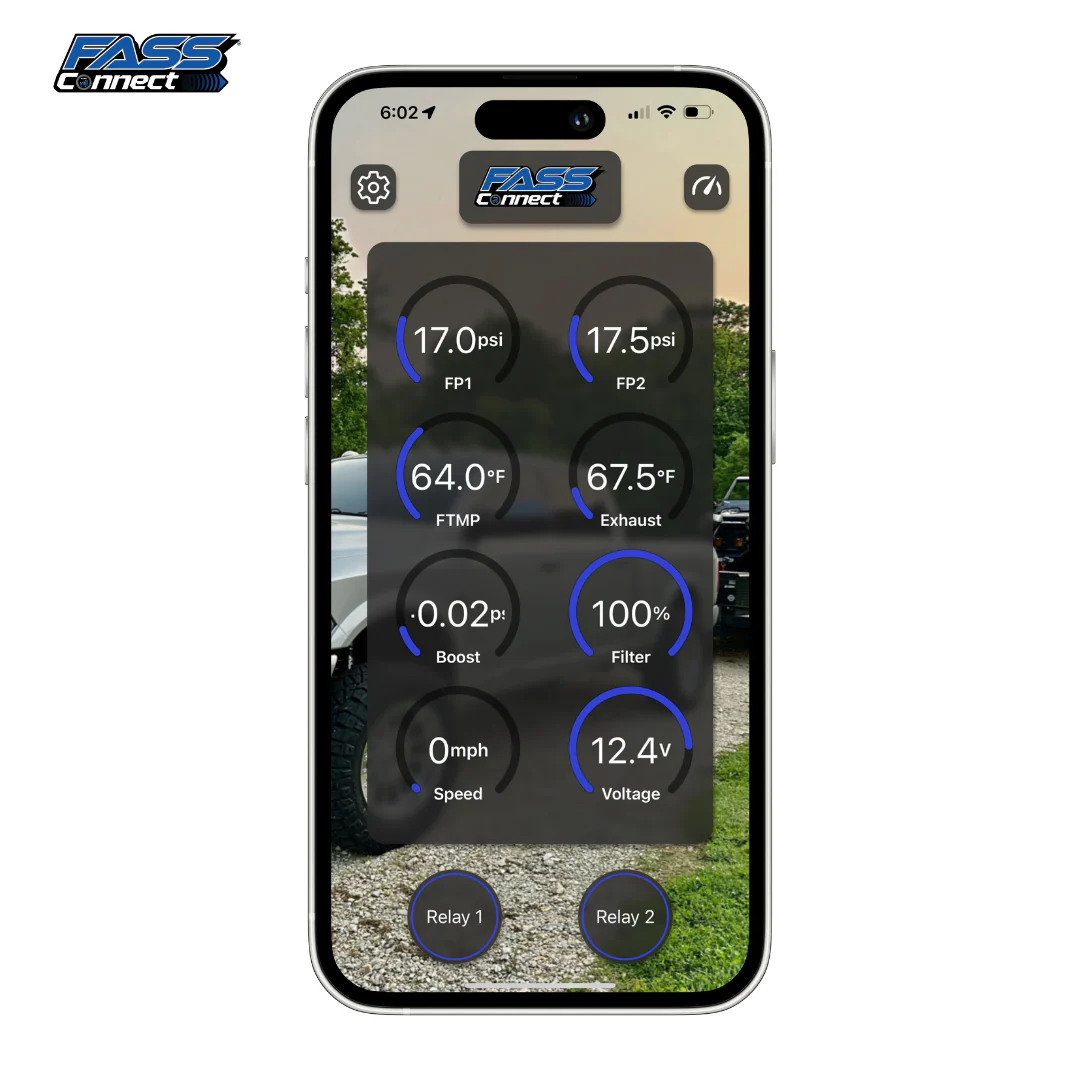

In addition to monitoring, the FASS Connect includes 2 relay trigger outputs, allowing you to power FASS Fuel Heaters or other accessories like auxiliary lights directly from the FASS Connect App. The app can monitor up to 8 parameters at a time: the 5 sensor inputs, plus filter life, GPS speed, and battery voltage.

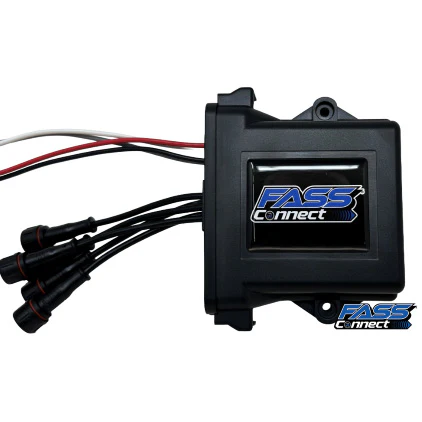

The FASS Connect ECU communicates wirelessly with the FASS Connect Gauge and the FASS Connect App, providing a clean installation and flexibility for applications where the gauge must be mounted farther from the ECU than on a standard pickup truck. Additional sensors are available as accessories to customize the system to your application.

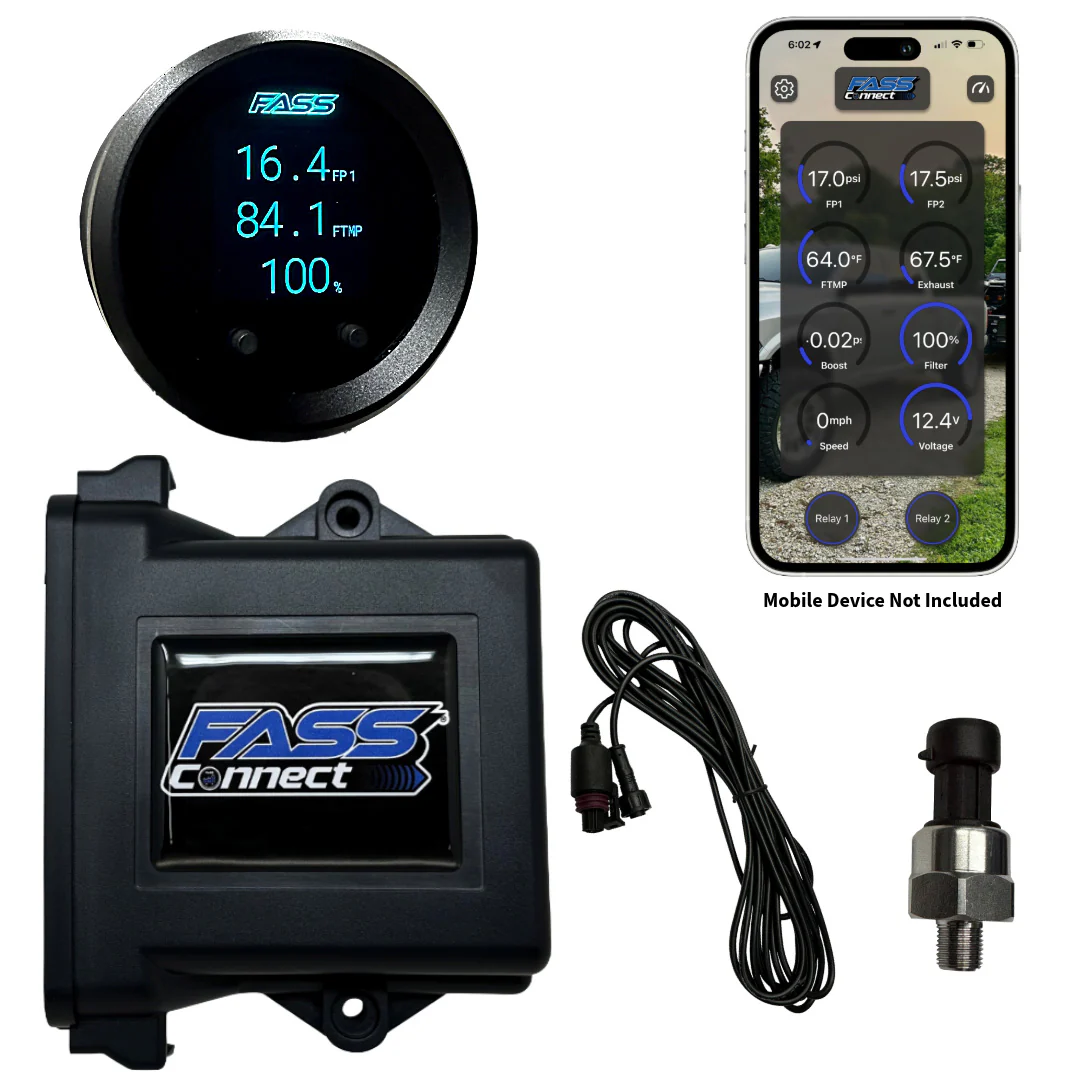

KIT CONTENTS:

• (1) FASS Connect ECU
• (1) 2-1/16” FASS Connect Gauge
• (1) 0–100 PSI Fuel Pressure Sensor
• (1) 15’ Fuel Pressure Sensor Harness
• FASS Connect App available for free on the Apple App Store and Google Play Store
• (2) Ring Terminals
• (1) Micro add-a-fuse with corresponding fuse
• (1) Mini add-a-fuse with corresponding fuse

APPLICATION NOTES:

• Universal applications with FASS Connect compatible systems
• Compatible with Ford Powerstroke, GM Duramax, and Dodge RAM Cummins trucks
• Supports additional sensors for pressure, temperature, and exhaust gas monitoring
• Allows adding a second fuel pressure sensor to monitor Extreme Water Separator filter life in real-time
• Sensors can be mixed and matched to run any combination of available accessory sensors
