FASS Connect LITE Digital Monitoring System
The FASS Connect LITE Digital Monitoring System was designed for a simple, clean installation and provides the ability to monitor your FASS Fuel System’s filter life, fuel pressure, and other drivetrain parameters using powerful wireless technology. The system features 5 sensor inputs that allow the use of a 0–100 PSI pressure sensor, a –40° to 260° temperature sensor, and a 2,000° exhaust gas temperature sensor.
In addition to monitoring, the FASS Connect LITE includes 2 relay trigger outputs for powering FASS Fuel Heaters or other accessories such as auxiliary lights directly from the FASS Connect App. The app can monitor up to 8 parameters at a time: the 5 sensor inputs, plus filter life, GPS speed, and battery voltage.
The FASS Connect ECU communicates wirelessly with the FASS Connect App, providing an ultra-clean installation and flexibility for applications where space or gauge placement is limited. This kit includes the FASS Connect ECU and a 0–100 PSI fuel pressure sensor; additional accessory sensors are available separately.
Adding a second fuel pressure sensor allows real-time monitoring of the Extreme Water Separator's filter life, helping you know exactly when service is required. Sensors can be mixed and matched to create any combination that fits your application.

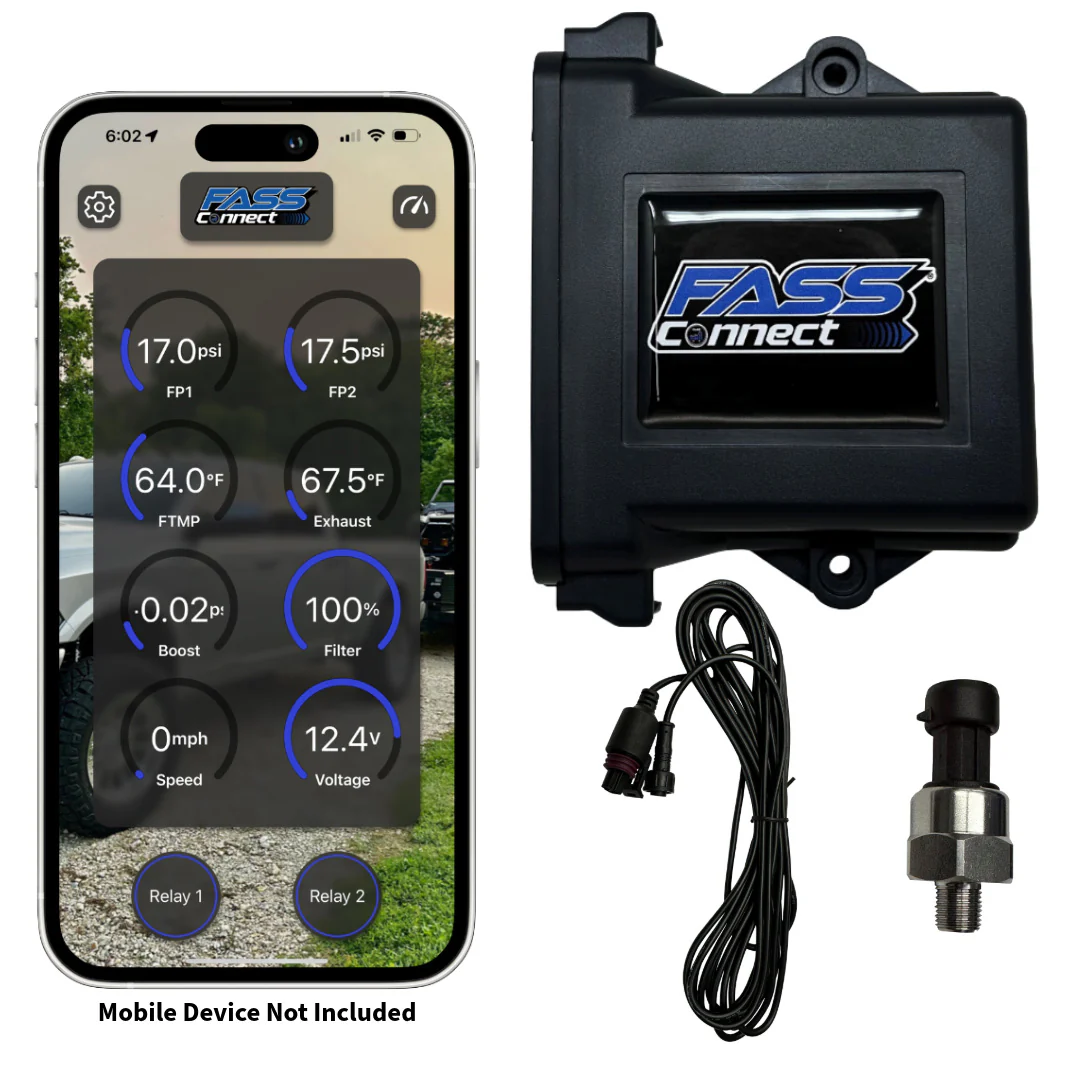

KIT CONTENTS:
- (1) FASS Connect ECU
- (1) 0–100 PSI Fuel Pressure Sensor
- (1) 15’ Fuel Pressure Sensor Harness
- FASS Connect App available for free on the Apple App Store and Google Play Store
- (2) Ring Terminals
- (1) Micro add-a-fuse with corresponding fuse
- (1) Mini add-a-fuse with corresponding fuse
APPLICATION NOTES:
- Universal applications with FASS Connect compatible systems
- Compatible with Ford Powerstroke, GM Duramax, and Dodge RAM Cummins trucks
- Supports additional sensors for pressure, temperature, and exhaust gas monitoring
- Allows adding a second fuel pressure sensor to monitor Extreme Water Separator filter life in real-time
- Sensors can be mixed and matched to run any combination of available accessory sensors
