BDS Suspension 8" 4-Link Lift Kit 13-18 Dodge 3500 6.7L Cummins

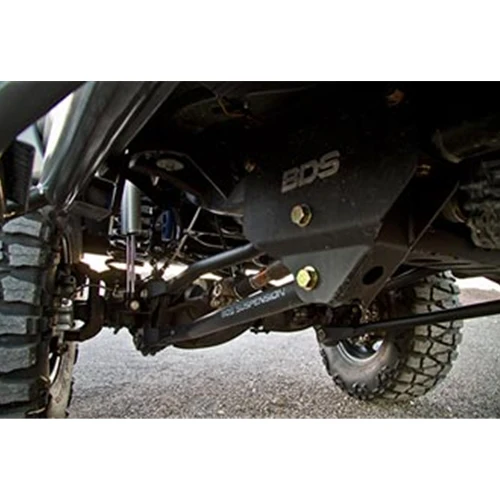

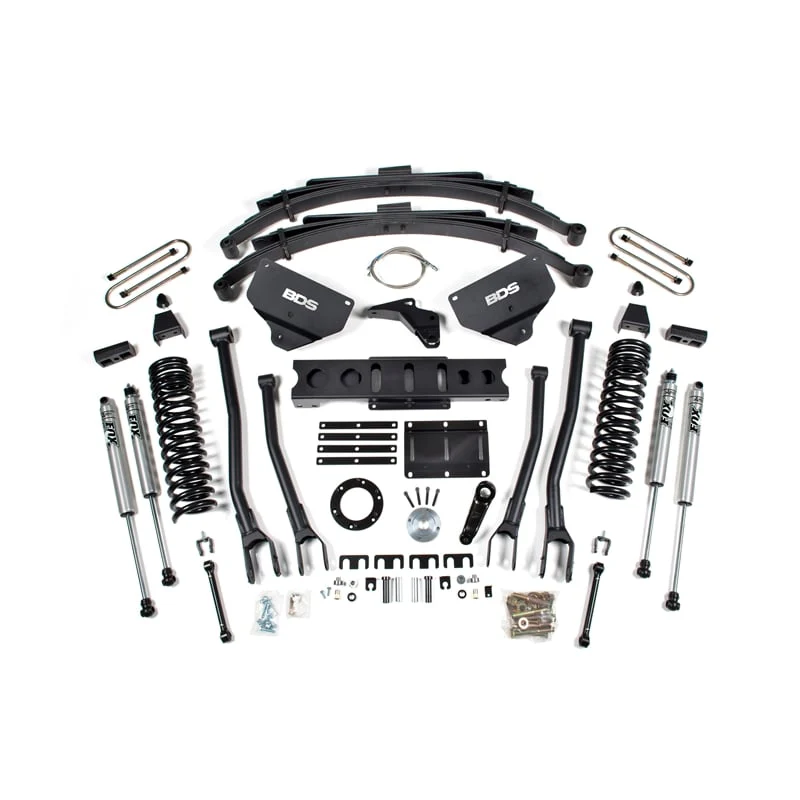

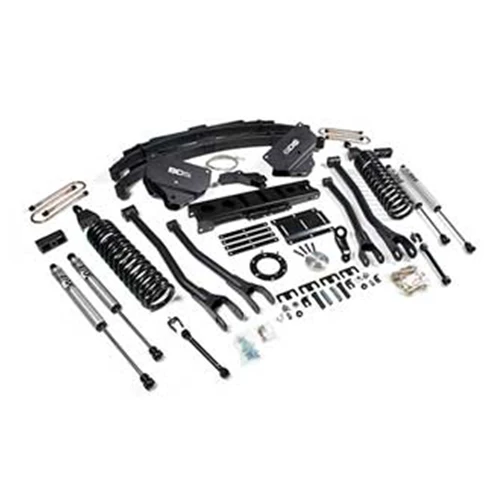

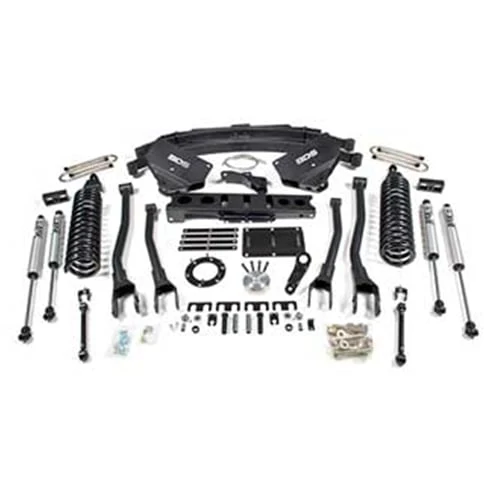

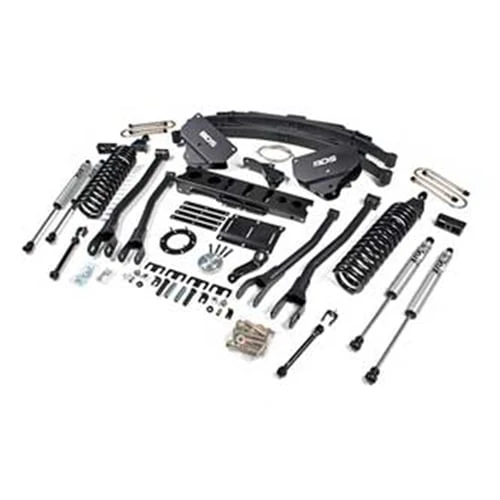

The experts at BDS Suspension designed this kit for the radius arm suspension on the 2013-2018 Dodge 3500 replaced the factory radius arm setup for a 4-link system. The design starts with 2 massive frame brackets that provide the mounting points for the new upper and lower control arms. These brackets locate off of the factory radius arm brackets, no factory bracket removal required.
The new 4-Link brackets mount similar to the current radius arm relocation brackets, wrapping the frame and nesting in the factory radius arms mounts. There is a minor amount of welding required to install the threaded frame insert for the radius arm brackets. This insert is necessary to provide the strongest possible mount. The control arm positions at the frame create better suspension geometry and reduce caster change through wheel travel compared to the radius arm setup. Thus creating better handling and more controlled steering "feel", especially in rough terrain when the suspension is allowed to travel and articulate. The large diameter, heavy-wall tubular control arms are formed for tire clearance when turning and position the axle slightly forward from stock to create more clearance to the rear portion of the front fenders.
At 8" of lift, transmission/transfer case relocation is required to allow front driveshaft functionality. BDS includes a new laser cut transmission crossmember and adjustable transmission mounting plate to increase clearance front driveline clearance. The transfer case is repositioned by way of a supplied indexing ring kit to correct the operating angle and a billet aluminum driveshaft spacer is supplied to allow the use of the factory driveshafts. Indexing rings are available for both 6-bolt and 8-bolt transmission equipped trucks, confirm transmission before ordering.
In the rear is a leaf spring + 2" block combo or a 5" block with Add-A-Pack. The rear leafs are designed to optimize ride quality and maximize wheel travel with a triple-stage leaf spring. New rear u-bolts are supplied to convert the factory 14mm over to the larger 5/8" diameter u-bolts and your choice of NX2 or FOX 2.0 performance gas shocks complete the rear of this truck.
Shock Options:
- NX2 Nitro Series Shocks - BDS NX2 series gas shocks offer impressive performance on and offroad. They use a nitrogen-charged, twin-tube design with 10-stage velocity-sensitive valving for lightning-fast dampening and superior control.
- FOX 2.0 Performance Series Shocks - Fox 2.0 performance series shocks have been tuned and tested by both FOX and BDS Suspension to maximize performance specific to each application and every BDS Suspension system. The Internal Floating Piston (IFP) shock design is based on proven Fox Racing Shocks race products but re-designed to maximize the ride quality, handling, and control of your BDS-equipped truck, whether on or off the road.
Carrier Bearing Drop Kit
A 2-piece rear drive shaft will require some extra work as the geometry of your drive system will now have some added stress. We recommend adding this carrier bearing drop to avoid any potential driveline vibration with the added lift height.
