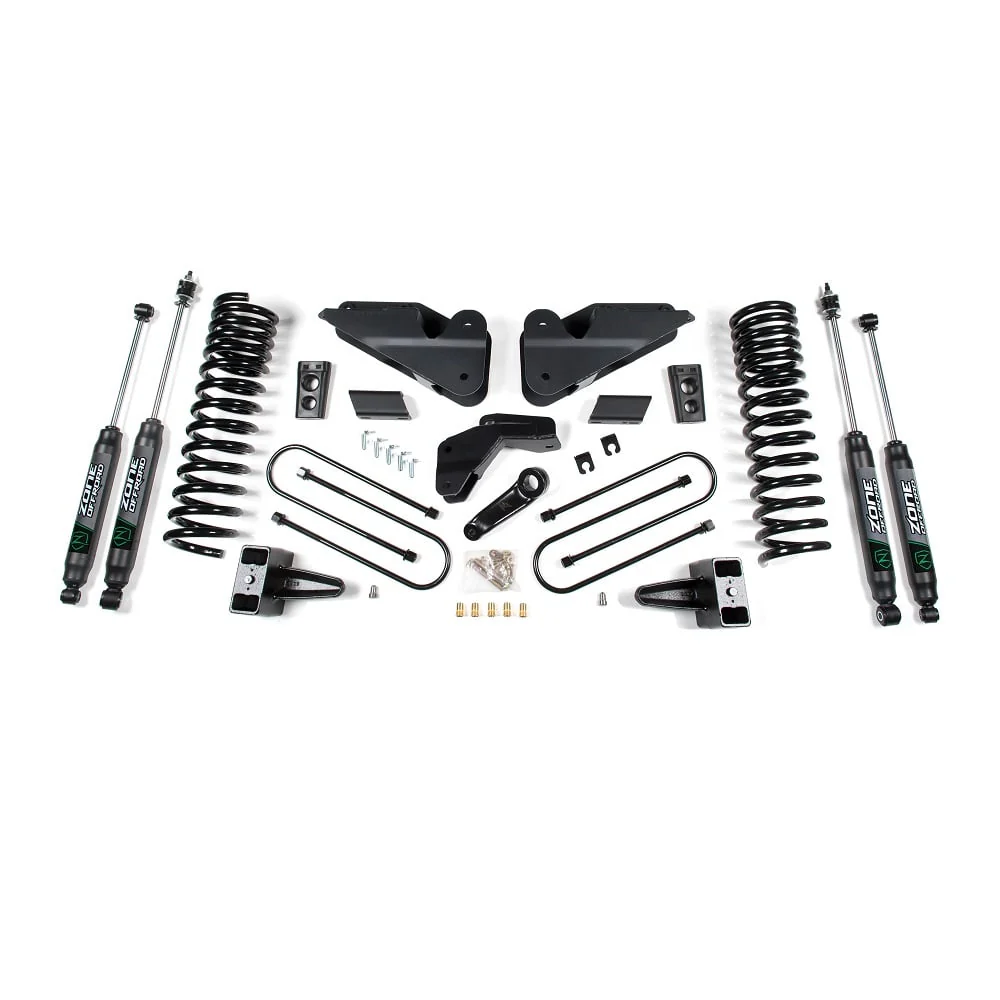

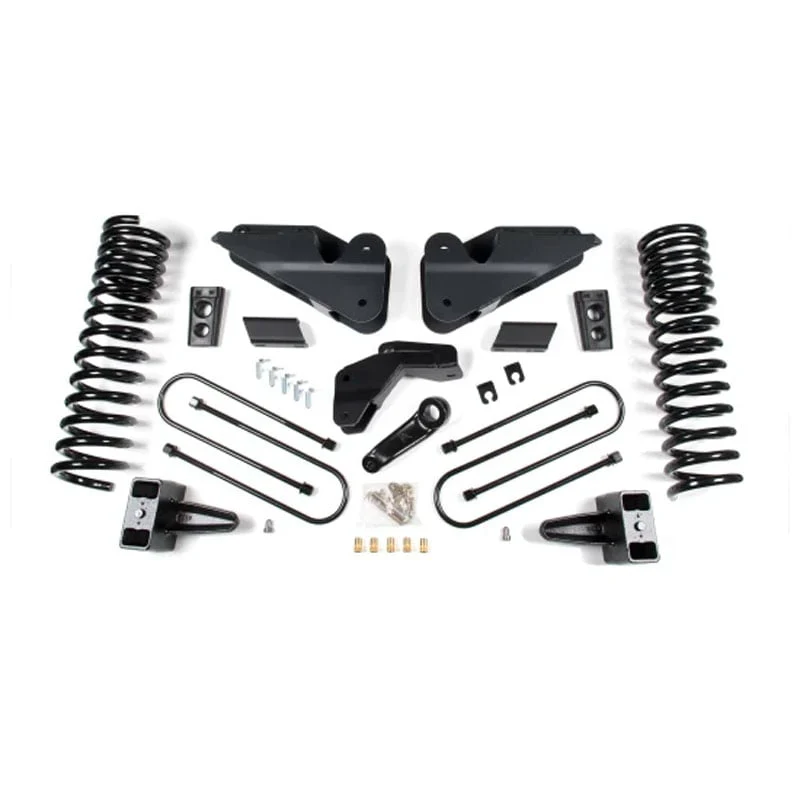

Zone Offroad 6.5" Suspension System 13-18 Ram 6.7L Cummins 3500
Take your Ram to new heights with this complete suspension system from Zone! This complete Zone Offroad lift kit for the 3500 Ram follows the same design as their 4.5" system. The system utilizes the same heavy-duty radius arm drop brackets to properly compensate for the massive 6.5" progressive rate coil springs.
The supplied drop pitman arm, extended bump stops, track bar relocation bracket, sway bar drops and brake line relocation adjust all the rest of the critical components and angles. The system coupled with a choice of standard hydraulic or Nitro shocks provides a great handling, smooth ride suspension system. The rear of the truck is lifted via a 5" block and u-bolts to provide a level stance.
For those looking to use their 4wd on the road at speed we highly recommend adding the optional t-case indexing kit to improve the front driveline angles. These two kits (for the 6-bolt and 8-bolt T-cases) come with a t-case indexing ring, front driveshaft spacer and heavy-duty replacement transmission crossmember. The t-case indexing kits can be installed when the lift is installed or anytime after if the need arises. The indexing kits will also work with other lift heights and brands for those customers in need of one.
Shock Options:
- NX2 Nitro Series Shocks - NX2 series gas shocks offer impressive performance on and offroad. They use a nitrogen-charged, twin-tube design with 10-stage velocity-sensitive valving for lightning-fast dampening and superior control.
- FOX 2.0 Performance Series Shocks - FOX 2.0 performance series shocks have been tuned and tested by both FOX and ZONE Suspension to maximize performance specific to each application and every BDS Suspension system. The Internal Floating Piston (IFP) shock design is based on proven Fox Racing Shocks race products but re-designed to maximize the ride quality, handling, and control of your ZONE-equipped truck, whether on or off the road.
Steering Stabilizer Option:
-
Zone Dual Steering Stabilizer Kit: Upgrade to a dual steering stabilizer setup which gives further enhanced vehicle control and lessens side-to-side motion to a greater effect. Heavy off-roading requires a heavy suspension that can handle it but can still be smooth on asphalt.
- Vehicles equipped with a two piece drive shaft and a carrier bearing require bearing drop kit D5406.
- Not designed for dually models.
- Not designed for factory rear airbag suspension models.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Zone Offroad 6.5" Suspension System 13-18 Ram 6.7L Cummins 3500
Zone Offroad 6.5" Suspension System 13-18 Ram 6.7L Cummins 3500
Take your Ram to new heights with this complete suspension system from Zone! This complete Zone Offroad lift kit for the 3500 Ram follows the same design as their 4.5" system. The system utilizes the same heavy-duty radius arm drop brackets to properly compensate for the massive 6.5" progressive rate coil springs.
The supplied drop pitman arm, extended bump stops, track bar relocation bracket, sway bar drops and brake line relocation adjust all the rest of the critical components and angles. The system coupled with a choice of standard hydraulic or Nitro shocks provides a great handling, smooth ride suspension system. The rear of the truck is lifted via a 5" block and u-bolts to provide a level stance.
For those looking to use their 4wd on the road at speed we highly recommend adding the optional t-case indexing kit to improve the front driveline angles. These two kits (for the 6-bolt and 8-bolt T-cases) come with a t-case indexing ring, front driveshaft spacer and heavy-duty replacement transmission crossmember. The t-case indexing kits can be installed when the lift is installed or anytime after if the need arises. The indexing kits will also work with other lift heights and brands for those customers in need of one.
Shock Options:
- NX2 Nitro Series Shocks - NX2 series gas shocks offer impressive performance on and offroad. They use a nitrogen-charged, twin-tube design with 10-stage velocity-sensitive valving for lightning-fast dampening and superior control.
- FOX 2.0 Performance Series Shocks - FOX 2.0 performance series shocks have been tuned and tested by both FOX and ZONE Suspension to maximize performance specific to each application and every BDS Suspension system. The Internal Floating Piston (IFP) shock design is based on proven Fox Racing Shocks race products but re-designed to maximize the ride quality, handling, and control of your ZONE-equipped truck, whether on or off the road.
Steering Stabilizer Option:
-
Zone Dual Steering Stabilizer Kit: Upgrade to a dual steering stabilizer setup which gives further enhanced vehicle control and lessens side-to-side motion to a greater effect. Heavy off-roading requires a heavy suspension that can handle it but can still be smooth on asphalt.
- Vehicles equipped with a two piece drive shaft and a carrier bearing require bearing drop kit D5406.
- Not designed for dually models.
- Not designed for factory rear airbag suspension models.
