Airdog II-5G 220 GPH Air Fuel Separation Lift Pump System 01-10 GM Duramax
Why GM opted not to include a factory fuel lift pump on all of the early model Duramax is still a mystery. While the CP3 injection pump can draw adequate fuel pressure at stock power levels (barely!), anything above that has been proven that fuel pressure quickly begins to drop off, limiting the amount of overall power that can be achieved, as well as decreasing potential fuel economy, and potentially harming the injection pump and injectors due to a lack of lubrication.

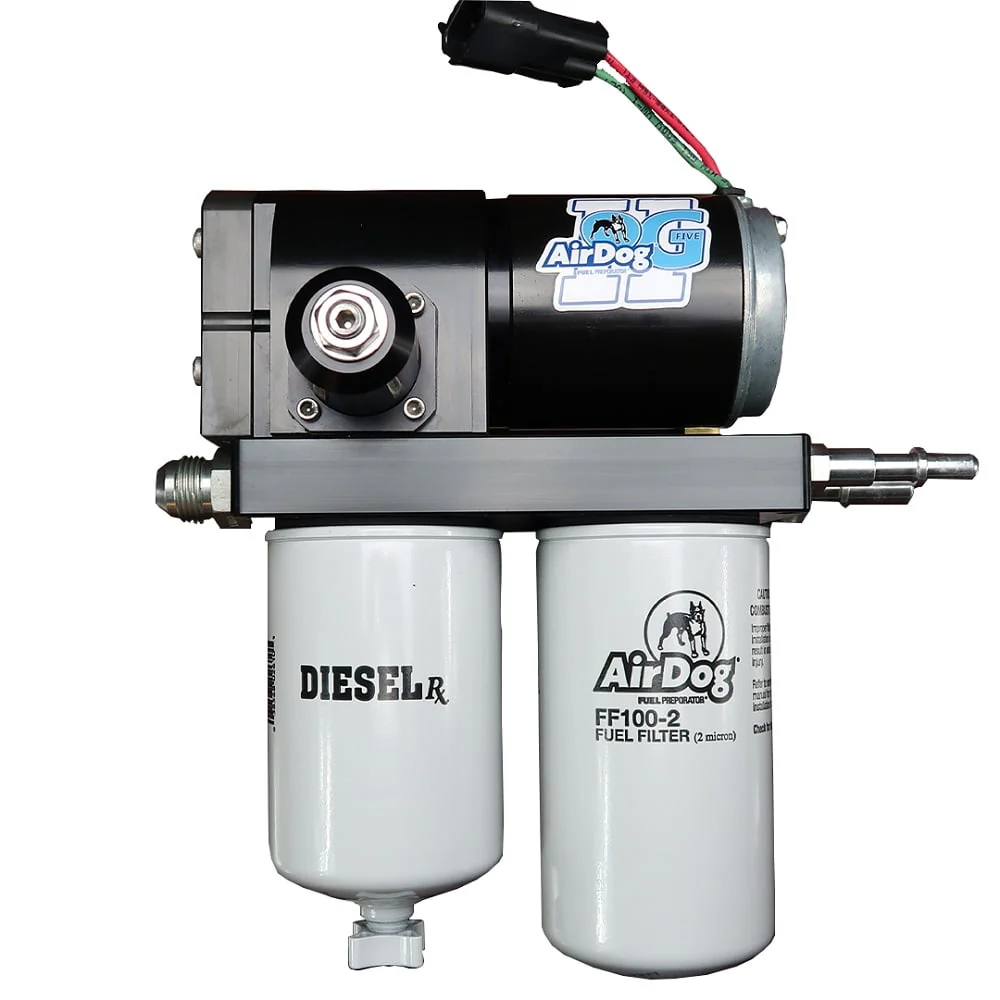

The AirDog II-5G is an all-in-one premium fuel pump and filtration system for your 2001-2010 Duramax diesel. This system removes water, particulates, and entrained air from the diesel fuel. The entrained air that is separated from the fuel is returned to the tank through a small return fitting. The fuel is delivered to the engine at the correct pressure and flow rate to meet the demands of the engine under all operating conditions.
The AirDog II-5G DF-220 systems feature a built-in adjustable diaphragm pressure regulator. All AirDog II-5G systems include a complete installation kit. The AirDog II-5G, for this particular application, is preset at 8-10 psi from the factory for a stock application. The regulator is adjustable up to 55 psi for fine-tuning the system to perfectly match up to your current and future performance upgrades.
The AirDog II-5G is an all-in-one premium fuel pump and filtration system for your 2001-2010 Duramax diesel. This system removes water, particulates, and entrained air from the diesel fuel. The entrained air that is separated from the fuel is returned to the tank through a small return fitting. The fuel is delivered to the engine at the correct pressure and flow rate to meet the demands of the engine under all operating conditions.
The AirDog II-5G DF-220 systems feature a built-in adjustable diaphragm pressure regulator. All AirDog II-5G systems include a complete installation kit. The AirDog II-5G, for this particular application, is preset at 8-10 psi from the factory for a stock application. The regulator is adjustable up to 55 psi for fine-tuning the system to perfectly match up to your current and future performance upgrades.
HOW IT WORKS:
The AirDog II-5G DF-220 draws fuel from the fuel tank through a 5/8” suction line to reduce the risk of cavitation at the pump. The fuel is then drawn through the water separator where 92% of water is removed per SAE spec 1488. It is then pressurized through a Gearotor pump and sent to the 2-micron fuel filter before it is sent to the injection pump. The air from aerated fuel, due to tank sloshing and engine return lines, is separated and sent back to the tank through the 3/8” return fitting. The excess fuel that the engine does not use is recirculated through the diaphragm regulator back to the suction side of the pump.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Airdog II-5G 220 GPH Air Fuel Separation Lift Pump System 01-10 GM Duramax
Airdog II-5G 220 GPH Air Fuel Separation Lift Pump System 01-10 GM Duramax
Why GM opted not to include a factory fuel lift pump on all of the early model Duramax is still a mystery. While the CP3 injection pump can draw adequate fuel pressure at stock power levels (barely!), anything above that has been proven that fuel pressure quickly begins to drop off, limiting the amount of overall power that can be achieved, as well as decreasing potential fuel economy, and potentially harming the injection pump and injectors due to a lack of lubrication.
The AirDog II-5G is an all-in-one premium fuel pump and filtration system for your 2001-2010 Duramax diesel. This system removes water, particulates, and entrained air from the diesel fuel. The entrained air that is separated from the fuel is returned to the tank through a small return fitting. The fuel is delivered to the engine at the correct pressure and flow rate to meet the demands of the engine under all operating conditions.
The AirDog II-5G DF-220 systems feature a built-in adjustable diaphragm pressure regulator. All AirDog II-5G systems include a complete installation kit. The AirDog II-5G, for this particular application, is preset at 8-10 psi from the factory for a stock application. The regulator is adjustable up to 55 psi for fine-tuning the system to perfectly match up to your current and future performance upgrades.
The AirDog II-5G is an all-in-one premium fuel pump and filtration system for your 2001-2010 Duramax diesel. This system removes water, particulates, and entrained air from the diesel fuel. The entrained air that is separated from the fuel is returned to the tank through a small return fitting. The fuel is delivered to the engine at the correct pressure and flow rate to meet the demands of the engine under all operating conditions.
The AirDog II-5G DF-220 systems feature a built-in adjustable diaphragm pressure regulator. All AirDog II-5G systems include a complete installation kit. The AirDog II-5G, for this particular application, is preset at 8-10 psi from the factory for a stock application. The regulator is adjustable up to 55 psi for fine-tuning the system to perfectly match up to your current and future performance upgrades.
HOW IT WORKS:
The AirDog II-5G DF-220 draws fuel from the fuel tank through a 5/8” suction line to reduce the risk of cavitation at the pump. The fuel is then drawn through the water separator where 92% of water is removed per SAE spec 1488. It is then pressurized through a Gearotor pump and sent to the 2-micron fuel filter before it is sent to the injection pump. The air from aerated fuel, due to tank sloshing and engine return lines, is separated and sent back to the tank through the 3/8” return fitting. The excess fuel that the engine does not use is recirculated through the diaphragm regulator back to the suction side of the pump.
$256.20
Original: $854.00
-70%Airdog II-5G 220 GPH Air Fuel Separation Lift Pump System 01-10 GM Duramax—
$854.00
$256.20Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Why GM opted not to include a factory fuel lift pump on all of the early model Duramax is still a mystery. While the CP3 injection pump can draw adequate fuel pressure at stock power levels (barely!), anything above that has been proven that fuel pressure quickly begins to drop off, limiting the amount of overall power that can be achieved, as well as decreasing potential fuel economy, and potentially harming the injection pump and injectors due to a lack of lubrication.
The AirDog II-5G is an all-in-one premium fuel pump and filtration system for your 2001-2010 Duramax diesel. This system removes water, particulates, and entrained air from the diesel fuel. The entrained air that is separated from the fuel is returned to the tank through a small return fitting. The fuel is delivered to the engine at the correct pressure and flow rate to meet the demands of the engine under all operating conditions.
The AirDog II-5G DF-220 systems feature a built-in adjustable diaphragm pressure regulator. All AirDog II-5G systems include a complete installation kit. The AirDog II-5G, for this particular application, is preset at 8-10 psi from the factory for a stock application. The regulator is adjustable up to 55 psi for fine-tuning the system to perfectly match up to your current and future performance upgrades.
The AirDog II-5G is an all-in-one premium fuel pump and filtration system for your 2001-2010 Duramax diesel. This system removes water, particulates, and entrained air from the diesel fuel. The entrained air that is separated from the fuel is returned to the tank through a small return fitting. The fuel is delivered to the engine at the correct pressure and flow rate to meet the demands of the engine under all operating conditions.
The AirDog II-5G DF-220 systems feature a built-in adjustable diaphragm pressure regulator. All AirDog II-5G systems include a complete installation kit. The AirDog II-5G, for this particular application, is preset at 8-10 psi from the factory for a stock application. The regulator is adjustable up to 55 psi for fine-tuning the system to perfectly match up to your current and future performance upgrades.
HOW IT WORKS:
The AirDog II-5G DF-220 draws fuel from the fuel tank through a 5/8” suction line to reduce the risk of cavitation at the pump. The fuel is then drawn through the water separator where 92% of water is removed per SAE spec 1488. It is then pressurized through a Gearotor pump and sent to the 2-micron fuel filter before it is sent to the injection pump. The air from aerated fuel, due to tank sloshing and engine return lines, is separated and sent back to the tank through the 3/8” return fitting. The excess fuel that the engine does not use is recirculated through the diaphragm regulator back to the suction side of the pump.
