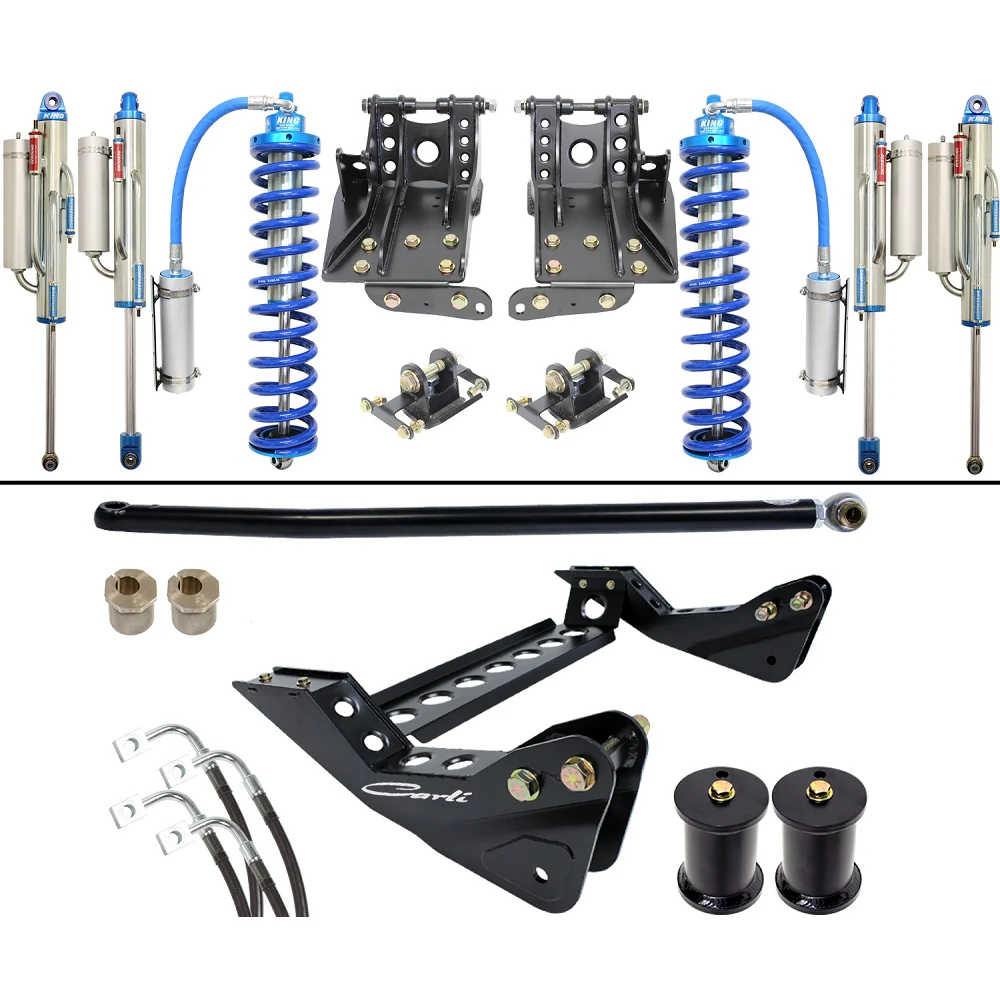

Carli 4.5" King Coilover 2.5 Bypass Suspension System 05-07 Ford 6.0L Powerstroke
First things first, do not call this a lift kit, that's just not fair to a system like this. This Carli 4.5" Coilover Bypass Suspension System is highly engineered for 2005-2007 Ford 6.0L Powerstroke SuperDuty's to drastically increase the overall performance of the suspension for varying uses.
This system is tailored for those truck owners seeking the highest quality suspension components melded together in order to drastically increase ride comfort and quality without sacrifice. You do NOT have to take your truck to the dunes every weekend to appreciate this system. Even if you're just daily driving your truck, or hauling your snowmobiles to the mountains on the weekends and demand the best, this is it.
THE BIGGEST INDUSTRY TALENTS: CARLI, KING, AND DEAVER
This system is the result of when you bring the biggest talents in the industry together......Carli, King, Deaver......and say "show me what you've got!" This system gives 4.5" of lift with 10 inches of wheel travel in the front and 12 inches of wheel travel in the rear that can gobble up sand dunes or sidewalks all day long. And as with all Carli systems, this kit has a vehicle specific valving profile for this suspension system to ensure superior ride quality, handling, and performance. And let's all admit it, these shocks alone look sweet! The Progressive Full Springs custom built by Deaver will ensure ride quality, travel, and performance are unmatched. The bypass mount is already built into the coil over mount, making your custom King Bypass Shocks an easy bolt-on.
Carli normally specs tubes that are oversized and deep in the travel stroke to allow a high volume of oil to bypass, ensuring the shock shaft comes out quick enough to maintain contact with the ground (doesn't get hung up in the bump-zone after a large hit). As the shock extends and closes off the rebound tube, all the valves on the rebound side engage to slow the shaft as it reaches maximum extension, top-out. Simply put, the larger the shock diameter, the more capable the setup; the more tubes and "zones", the more adjustability; the larger the tubes, the more fluid can flow around the piston and the more valving you can run to increase the stopping power in the "bump-stop" or "top-out" zone.

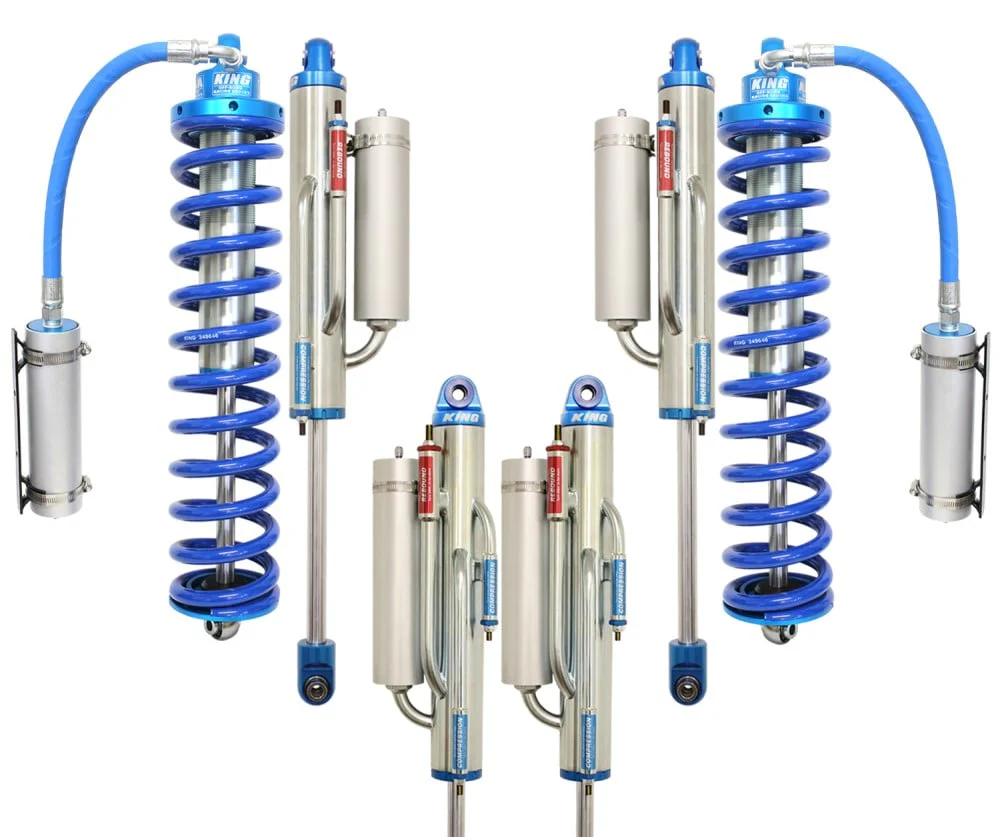

CARLI CUSTOM TUNED 2.5" KING SHOCKS
The Coilover/Bypass system boasts Carli-specific, blueprinted, King 2.5" shocks on all four corners. To provide you with the best product, Carli designed a custom piston to determine proper base flow rates to ensure the shock works well in the heavy-duty truck platform; the shocks were then tuned around the custom pistons based on the only thing that truly matters, seat-of-the-pants feel. ALL of Carli's King shocks are finished off with shafts machined and polished from a solid piece of 17-4 Stainless. Unlike King's standard shafts, there is no coating to wear off, weather can't hurt them and if there is a small chip, you can round the edges with emery cloth to ensure the seal housing isn't damaged as they're not brittle like the stock, hardened shafts. The shocks are finished with King oil good to -55° F. Note that all King shocks are built with a plated steel body. If subjected to inclement weather for extended periods, we recommend wrapping your shocks in 3M to provide a replaceable moisture barrier.
OPTIONAL SWAY BAR END LINKS

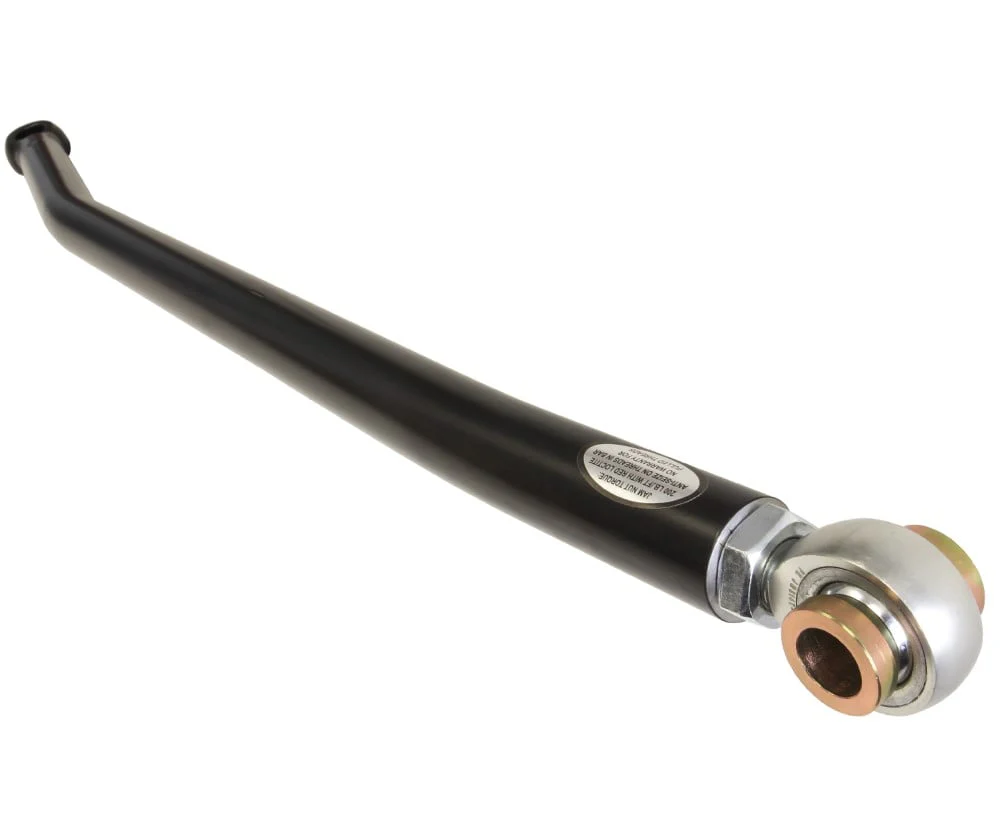

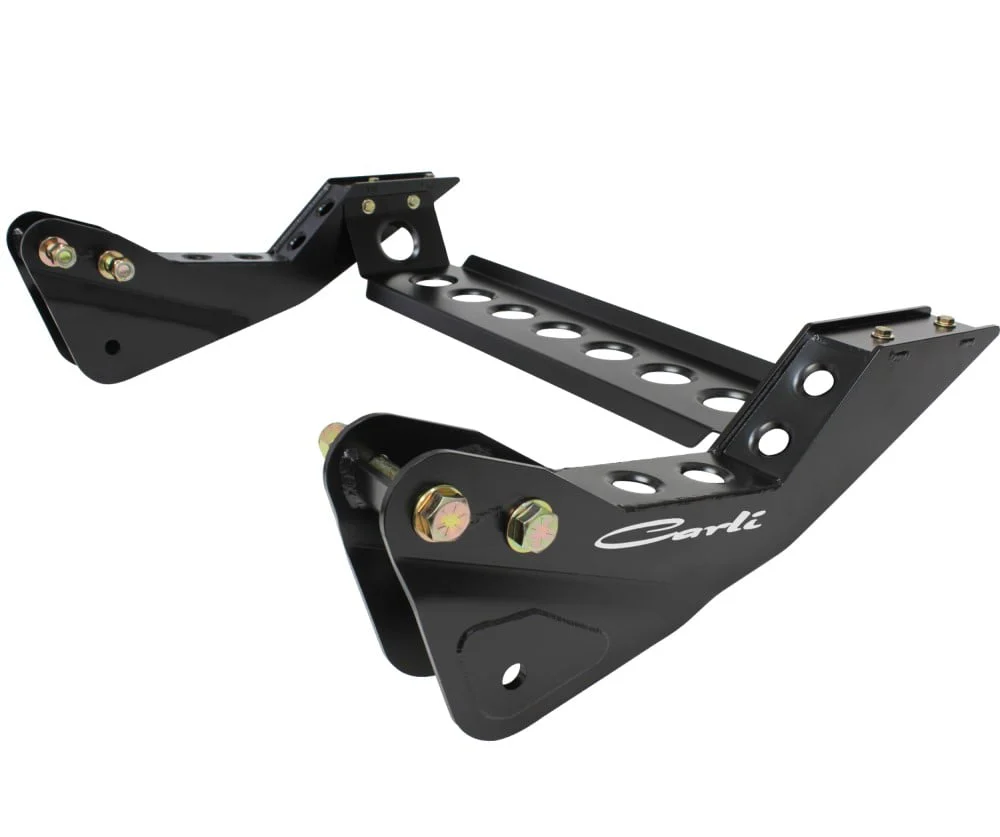

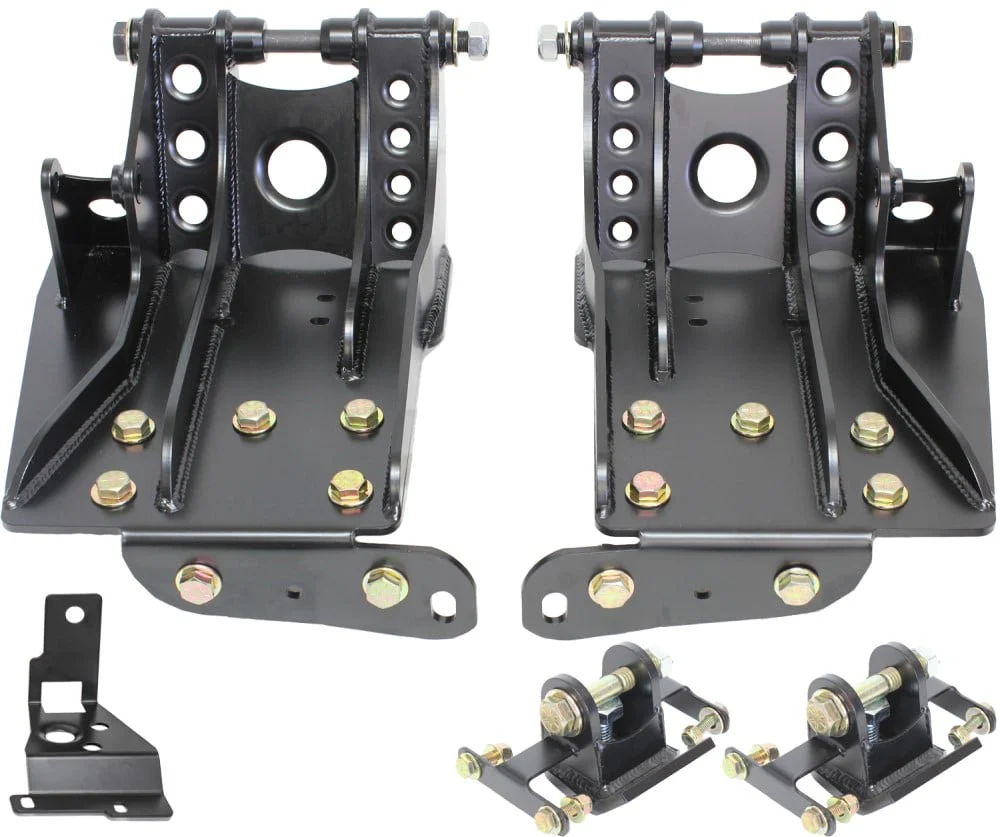

The truck will sit 4.5" higher in the front and have more wheel travel thanks to the coilover that mounts in the Carli Coilover Conversion Bracket. Radius Arm Drop Brackets reset the pivot point and keep the travel linear for the best ride while Extended Sway Bar End Links reset the sway bar engagement point. While Bump Stop Drops protect the shocks from over-compressing, the Adjustable Track Bar centers the front axle and Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, you'll get Caster Shims to tighten the steering.
SWAY BAR END LINKS SPECIFICATIONS:
- Corrects Sway Bar Geometry on 4.5" Lift
- Direct Bolt-In
- Unhindered Articulations, 100% Rebuildable
- 17-4 Stainless Steel Construction
OPTIONAL FULL PROGRESSIVE LEAF SPRINGS
The rear is outfitted with a Full Progressive Spring Pack requiring no block to achieve proper ride height; thus, travel is extended and wheel hop/axle wrap minimized at the cost of 15% less load capacity than a stock F-250. The Coilover-Bypass is an Off-Road oriented system; thus, we recommend the purchase of a Differential Guard for axle protection, High Mount Steering Stabilizer for steering control and Fabricated Radius Arms for strength and Limit Strap mounting. At this level of suspension, a roll cage is also recommended if the system will be used to its full potential.
SPECIFICATIONS:
- Requires No Block To Achieve Proper Ride Height
- Light 3/4-Ton Capacity, Full Capacity Attainable with Long Travel Airbags

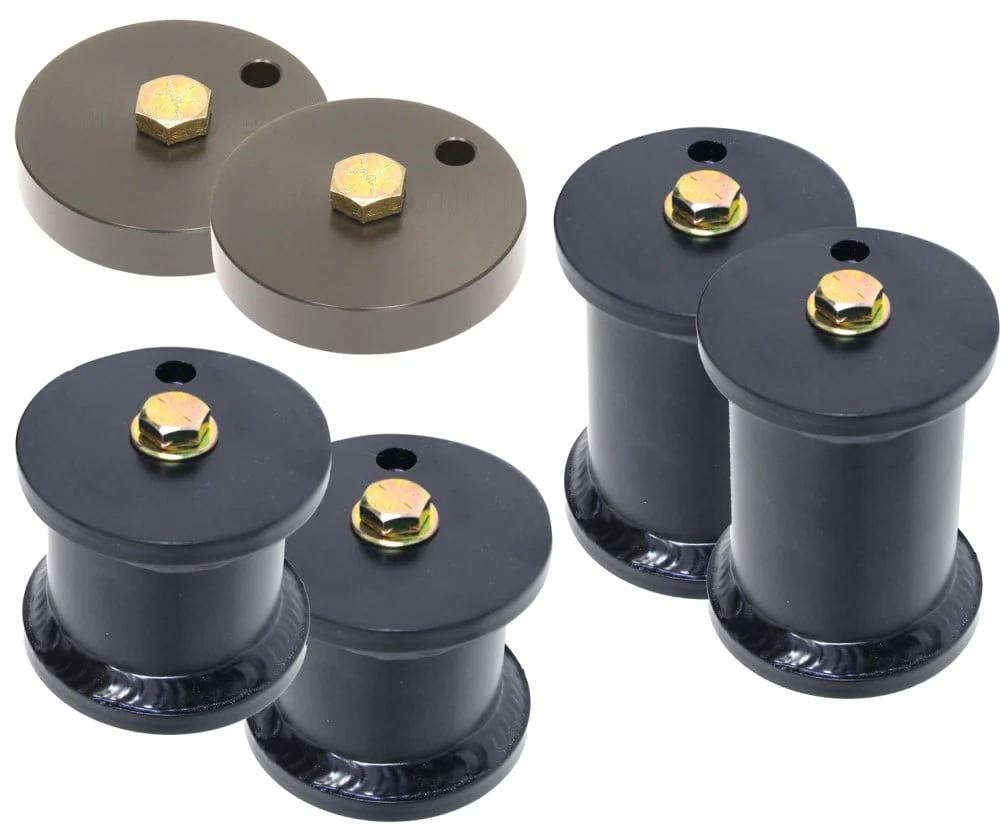

- Includes New U-Bolts and Rear Bump Stop Drops
- Provides a 1", Rear High Stance on Matching 4.5" Suspension Systems
Being bypass equipped, you can expect to hear clicking from the opening and closing of the check valves in the external tubes of the shocks. On the bright side, the suspension is tuned by Carli, but fully adjustable to your preference. You can turn tubes for more float and ride comfort or engage more valving for better control and off-road performance. From Carli, these shocks are setup with a wide open rebound and neutral compression.
IMPORTANT NOTES:
NO LEAF SPRING OPTION NOTES:
- Diesel Power Products and Carli strongly suggest the use of either options available. These options are designed to work flawlessly with the rest of your kit and, are the best way to go. However, we understand you may already have the necessary provisions and/or products to use with this kit so we give you the option to not include any leaf spring provisions.
NO SWAY BAR OPTION NOTES:
Diesel Power Products and Carli strongly suggest the use of either options available. These options are designed to work flawlessly with the rest of your kit and, are the best way to go. However, we understand you may already have the necessary provisions and/or products to use with this kit so we give you the option to not include any sway bar drop or Torsion Sway Bar provisions.
OPTIONAL UPGRADES:
LEAF SPRING SHACKLE
Factory rear shackles are strong but can make the ride stiff and bouncy. Carli’s shackles are made from thick steel and have serviceable bushings that let the rear suspension move smoothly, reduce axle wrap and wheel hop. Made from strong 1/4" steel, greasable and rebuildable for long life, provides a far better ride than the factory shackle, and fits both factory and Carli springs
LONG TRAVEL AIRBAGS
Long Travel Airbags let you carry heavy loads or tow without losing the smooth ride. They support the rear suspension, reduce sag under weight, and keep the ride comfortable while maintaining proper suspension travel for off-road or daily driving.
CARRIER BEARING DROP
The Carrier Bearing Drop lowers the driveshaft carrier to prevent vibration and keep your rear suspension running smoothly on lifted trucks. Carrier Bearing Drop lowers the carrier on 2-piece driveshafts to prevent take-off shudder and driveline vibration, and includes stackable 3/8" shims to accommodate 1"-4" of rear lift.
LOW MOUNT STEERING STABILIZER
- Minimize steering wheel feedback and maximize control
- Adjustable nitrogen pressure and custom tuned valves for larger tires
- Includes differential guard and clamp
- Optimized for Carli 2.5″ systems
