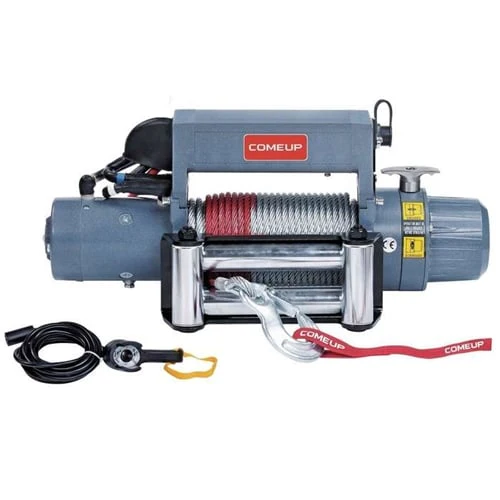

Are you ready for a fast, reliable, compact winch rated for up to 9,000 lbs. at a price point that can't be beat? Check out the DV-9i from ComeUp Winches.

DESCRIPTION:

• Fast, powerful and high efficiency performance.
• Heavy duty series wound motor delivers superior torque output and faster line speed.
• Submersible sealed contactor with silver-alloy contact pads, thick copper buss bars and submersible construction ensures weather resistance.
• Patented Cone Brake Structure - "Brake outside the drum" - allows rapid heat dispersion.
• Tough Aluminum alloy housings.
• Industrial grade waterproof remote control comes with a thermometric LED indicator on the hand-held switch that automatically alerts when the motor is over-heated.
• Rugged and quiet 3-stage steel planetary gears for maximum mechanical efficiency.
• An ergonomic T-handle positively engages the free spool clutch through multiple evenly spaced locking holes for rapid rope payout. The entire clutch can be rotated to reposition the T-handle in multiple locations.

SPECIFICATIONS:

• Rated Line Pull: 9,000 lbs (4,082 kg) single line
• Motor: 4.6 hp / 3,430 w 12V Series Wound
• Gear Ratio: 3-Stage Planetary 156:1
• Clutch (freespooling): Rotating Ring Gear
• Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
• Winch Construction: Aluminum Die Cast Housing with Steel Drum
• Drum Size: 2.5" x 9" (63.5 x 228 mm)
• Control: Waterproof remote with thermometric indicator LED w/17' (5 m) cord
• Rope Type: Galvanized aircraft A7 x 19
• Rope Size: 21/64" x 100' (8.3 mm x 30.5 m)

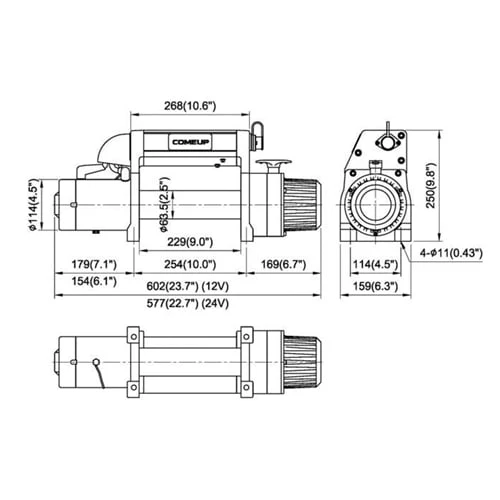

• Mounting Bolt Pattern: 10.0" x 4.5" (254 x 114 mm)
• Winch Weight: 81.6 lbs (33 kg)
• Gross Weight: 97 lbs (43 kg)
