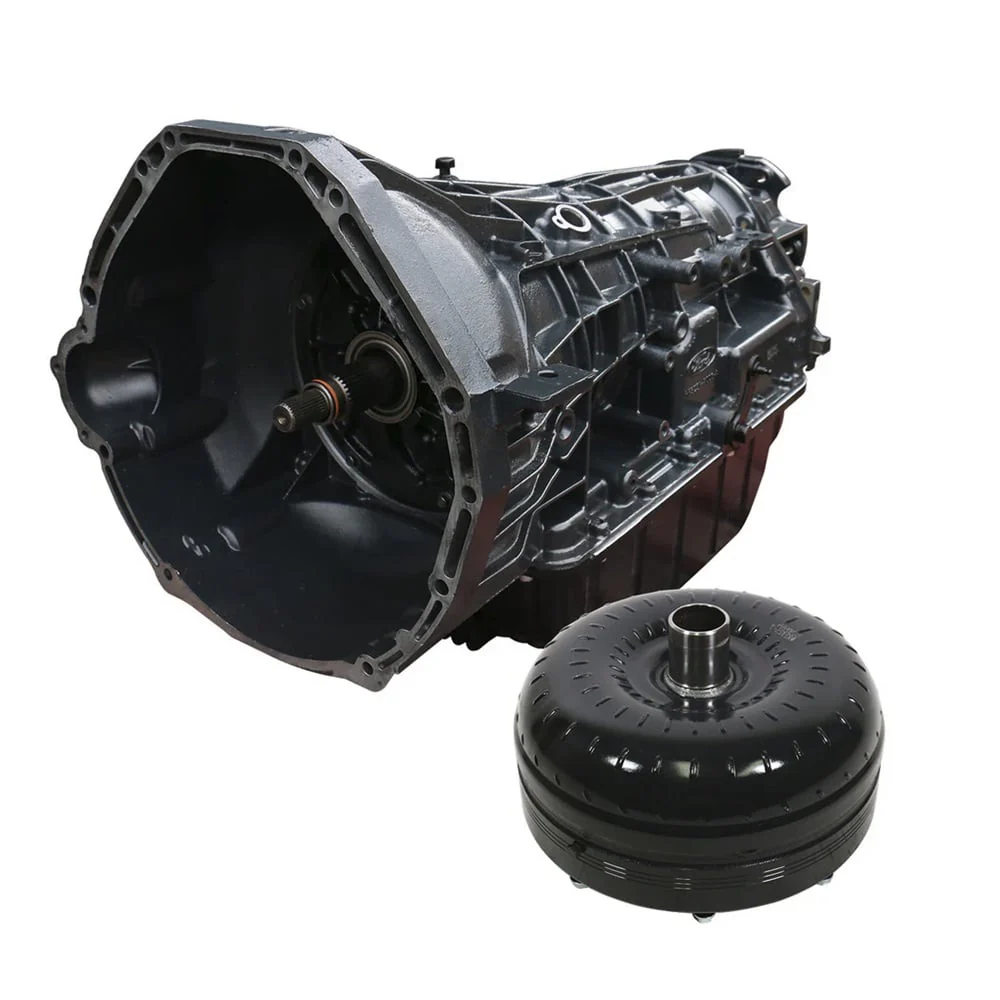

BD TowMaster 5R110W Transmission & Torque Converter Package 08-10 6.4L Ford Powerstroke 4WD
From street and towing to full race, BD Builds Them Best!
Upon the release of the 5R110W, many thought that this would be the unbreakable transmission. While it has proven itself to be a very capable transmission, the tuning breakthroughs of the 6.4L engines have easily found the breaking points of them. Through extensive research and development, BD has engineered a transmission that will without a doubt outperform the stock unit, and be able to handle the rigors of whatever torture you can throw at it.
To some it is a challenge to simply disassemble and assemble a Ford transmission. For BD, the challenge was to improve the durability and performance of these transmissions in demanding, high-torque diesel applications.
The smooth shifting associated with the stock Ford transmission is the result of slippage that produces heat and accelerates wear. BD transmission and converter clutches are made from specialized, high-performance materials, and 33% more clutch surface is added to eliminate slippage.
A re-programmed valve body with improved valve designs, higher line pressure and enhanced oil flow creates positive clutch apply, which results in quick, sharp shifts. A BD deep-sump aluminum pan is also fitted, which increases oil capacity for cooler operation. The planetary gear packs are made from high-strength steel, and heavy-duty, one-way roller Sprague clutches maintain directional stability, unlike the stock or inferior aftermarket products, which can explode.
Finally, each transmission's shift pattern and oil pressure is tested on our transmission dynamometer, then shipped to you in a virtually indestructible molded plastic container. For ultimate strength and reliability.
| 5R110W Clutch Count | ||
|---|---|---|
| CLUTCH | STOCK | BD |
| COAST CLUTCH | 3 | 3 |
| FORWARD | 4 | 4 |
| DIRECT | 4 | 6 |
| LOW REVERSE | 6 | 6 |
| INTERMEDIATE | 3 | 5 |
| OVERDRIVE | 3 | 5 |
SHIPPING POLICY - Due to the size and weight of transmissions, they cannot be shipped through traditional couriers, such as UPS, FedEx, USPS, etc. and MUST be shipped via truck freight. We do not offer free shipping on transmissions, however, we do offer a very competitive rate charged at checkout. Once your core transmission is ready for pick up, you just need to give us a call or send us an e-mail with your original order number and the core tag on the transmission, and we can supply you with a quote on the return shipping as that is not covered in the original shipping cost. Otherwise, we give you the option to coordinate the return shipping on your own and independently pay your courier of choice. As always, if you have any questions, give us a call or send us an e-mail.
IMPORTANT NOTES: If your truck has PTO provisions, please make note of this in the comments section at checkout.
