BD Xtrude Auxiliary Transmission Cooler

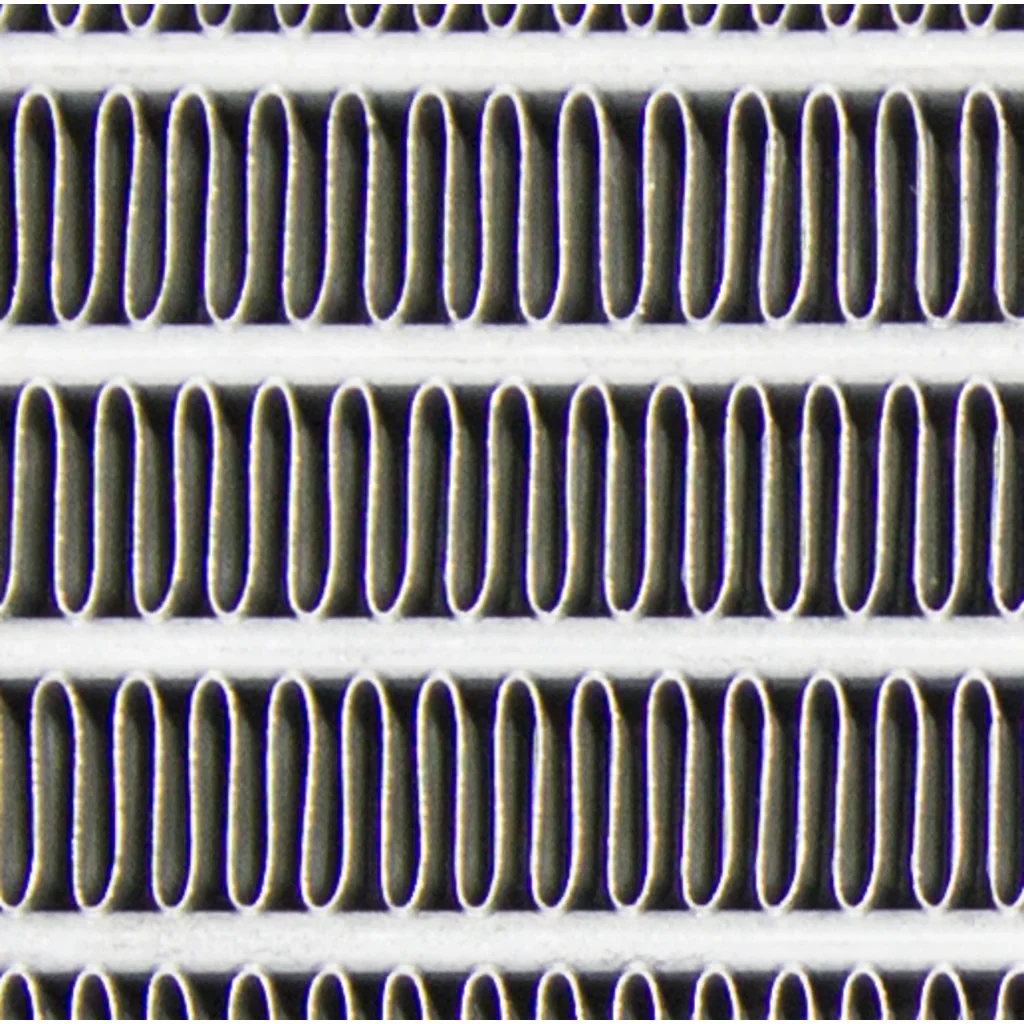

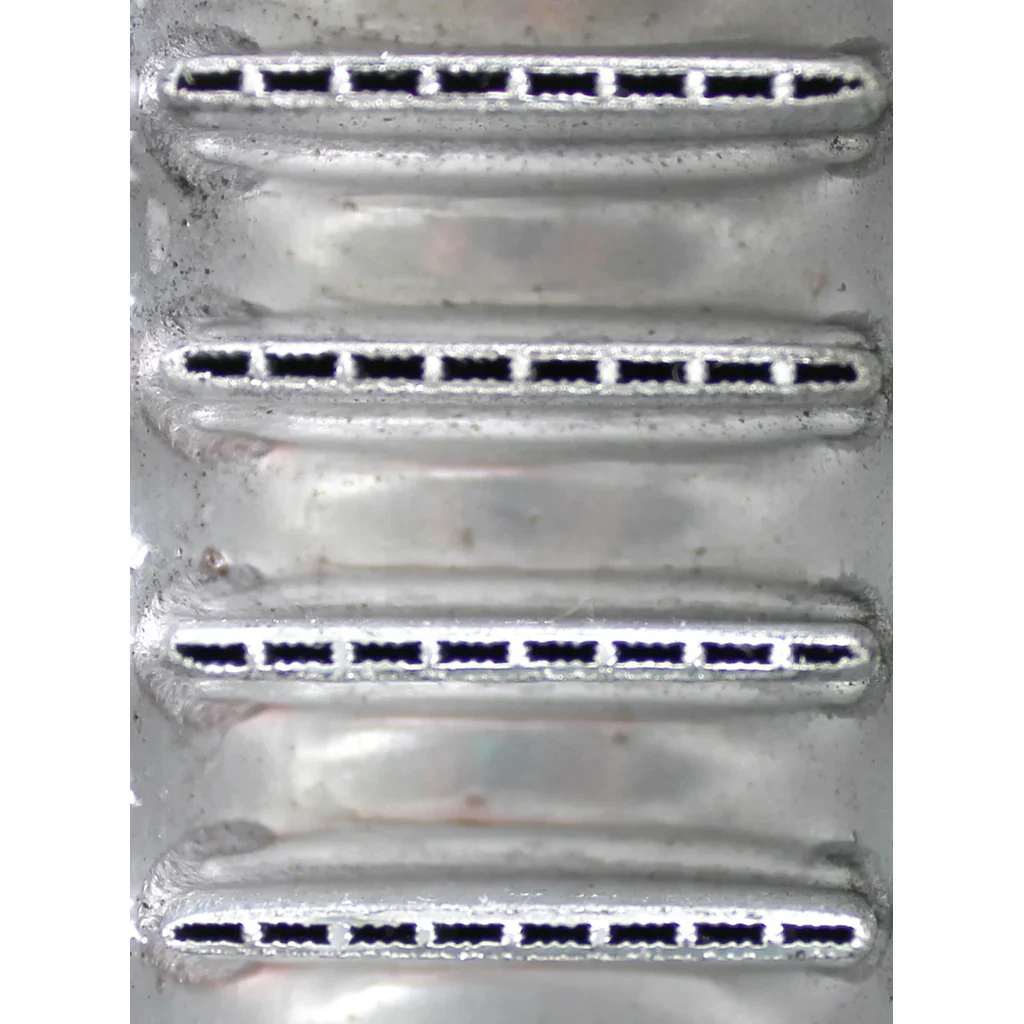

BD's Xtruded Transmission Oil Coolers use the same high efficiency Micro Extruded bar technology that is found in their intercoolers, providing 22% more cooling over other designs. The 200 micro extruded passages provide a large surface area in a compact design that allows the transfer of to external air flow cooling, while a turbulent oil flow design promotes a more complete cooling.

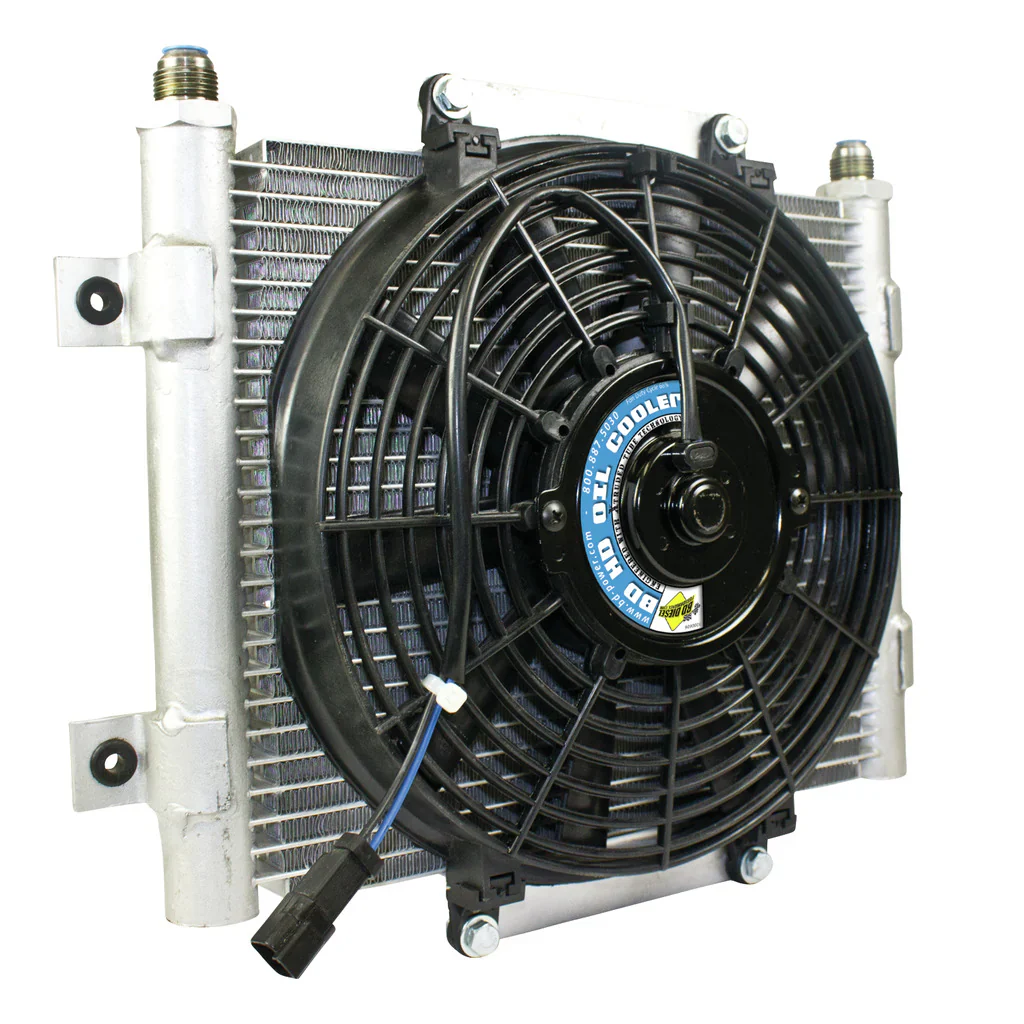

Large 5/8" ports prevent restriction and furnace brazed rails have been tested to 300 PSI of pressure. The thermostatically controlled 80-watt, 10 inch, 800 CFM electric fan offers the ultimate in automatic oil temperature control. This combination gives BD's Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW!
| VEHICLE APPLICATION CHART | |||
|---|---|---|---|
| Years | Make | Applications | Fitting Tube Size |
| 1999-2002 | Ford | 4R100 | 3/8" Tube |
| 1994-1997 | Ford | E40D | 5/16" Tube |
| 1999-2000 | GM | 4L80 | 3/8" Tube |
| 1991-1999 | GM | 4L60 | 5/16" Tube |
| 1993-2026 | Dodge | 47RH/RE,48RE,68RFE | 1/2" Tube |
| 2001-2010 | GM | Allison 1000 | 5/8" Tube |
| 2003-2010 | Ford | 5R110 | 1/2" Tube |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
BD Xtrude Auxiliary Transmission Cooler
BD Xtrude Auxiliary Transmission Cooler
BD's Xtruded Transmission Oil Coolers use the same high efficiency Micro Extruded bar technology that is found in their intercoolers, providing 22% more cooling over other designs. The 200 micro extruded passages provide a large surface area in a compact design that allows the transfer of to external air flow cooling, while a turbulent oil flow design promotes a more complete cooling.
Large 5/8" ports prevent restriction and furnace brazed rails have been tested to 300 PSI of pressure. The thermostatically controlled 80-watt, 10 inch, 800 CFM electric fan offers the ultimate in automatic oil temperature control. This combination gives BD's Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW!
| VEHICLE APPLICATION CHART | |||
|---|---|---|---|
| Years | Make | Applications | Fitting Tube Size |
| 1999-2002 | Ford | 4R100 | 3/8" Tube |
| 1994-1997 | Ford | E40D | 5/16" Tube |
| 1999-2000 | GM | 4L80 | 3/8" Tube |
| 1991-1999 | GM | 4L60 | 5/16" Tube |
| 1993-2026 | Dodge | 47RH/RE,48RE,68RFE | 1/2" Tube |
| 2001-2010 | GM | Allison 1000 | 5/8" Tube |
| 2003-2010 | Ford | 5R110 | 1/2" Tube |
Original: $354.95
-70%$354.95
$106.48Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
BD's Xtruded Transmission Oil Coolers use the same high efficiency Micro Extruded bar technology that is found in their intercoolers, providing 22% more cooling over other designs. The 200 micro extruded passages provide a large surface area in a compact design that allows the transfer of to external air flow cooling, while a turbulent oil flow design promotes a more complete cooling.
Large 5/8" ports prevent restriction and furnace brazed rails have been tested to 300 PSI of pressure. The thermostatically controlled 80-watt, 10 inch, 800 CFM electric fan offers the ultimate in automatic oil temperature control. This combination gives BD's Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW!
| VEHICLE APPLICATION CHART | |||
|---|---|---|---|
| Years | Make | Applications | Fitting Tube Size |
| 1999-2002 | Ford | 4R100 | 3/8" Tube |
| 1994-1997 | Ford | E40D | 5/16" Tube |
| 1999-2000 | GM | 4L80 | 3/8" Tube |
| 1991-1999 | GM | 4L60 | 5/16" Tube |
| 1993-2026 | Dodge | 47RH/RE,48RE,68RFE | 1/2" Tube |
| 2001-2010 | GM | Allison 1000 | 5/8" Tube |
| 2003-2010 | Ford | 5R110 | 1/2" Tube |
