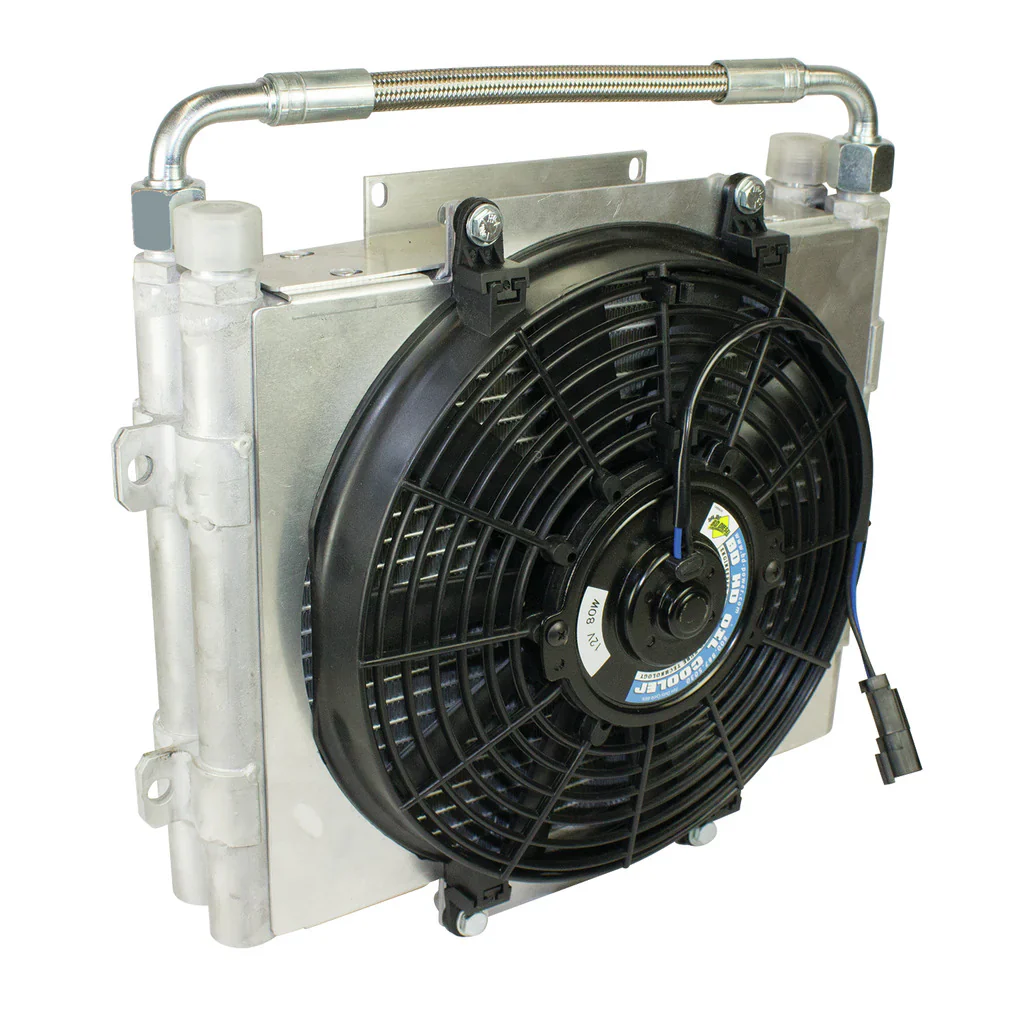

HEAT! This is the number one killer of transmissions. Whether you tow or hotrod your diesel, transmission failures are something that we all worry about. You can help to alleviate some of that worry with one of BD's Double Stacked Xtruded Transmission Oil Coolers. This is the MOST capable cooling device for your transmission on the market.

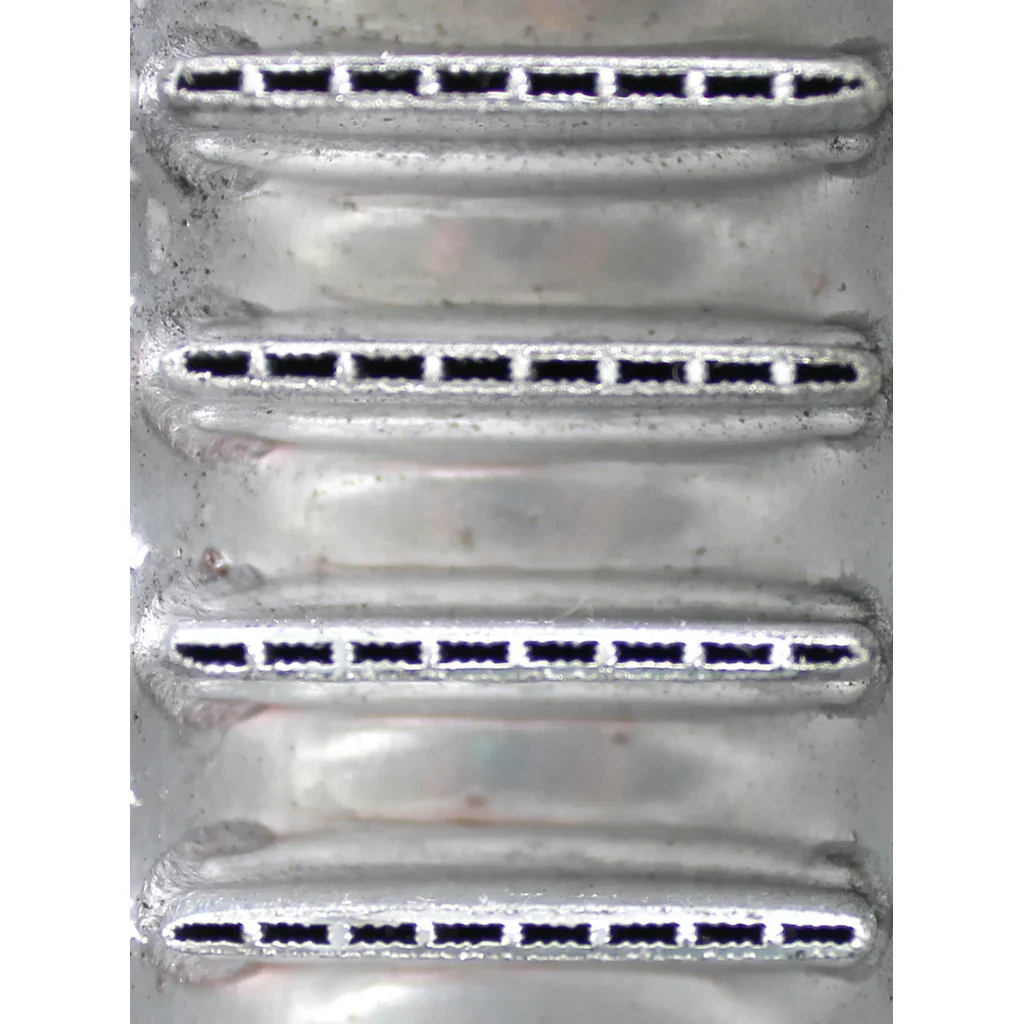

Using the same Micro Extruded bar technology as in BD's air-to-air Charge Air coolers, the 200 Micro Extruded passages in each cooler (400 in total) provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling.

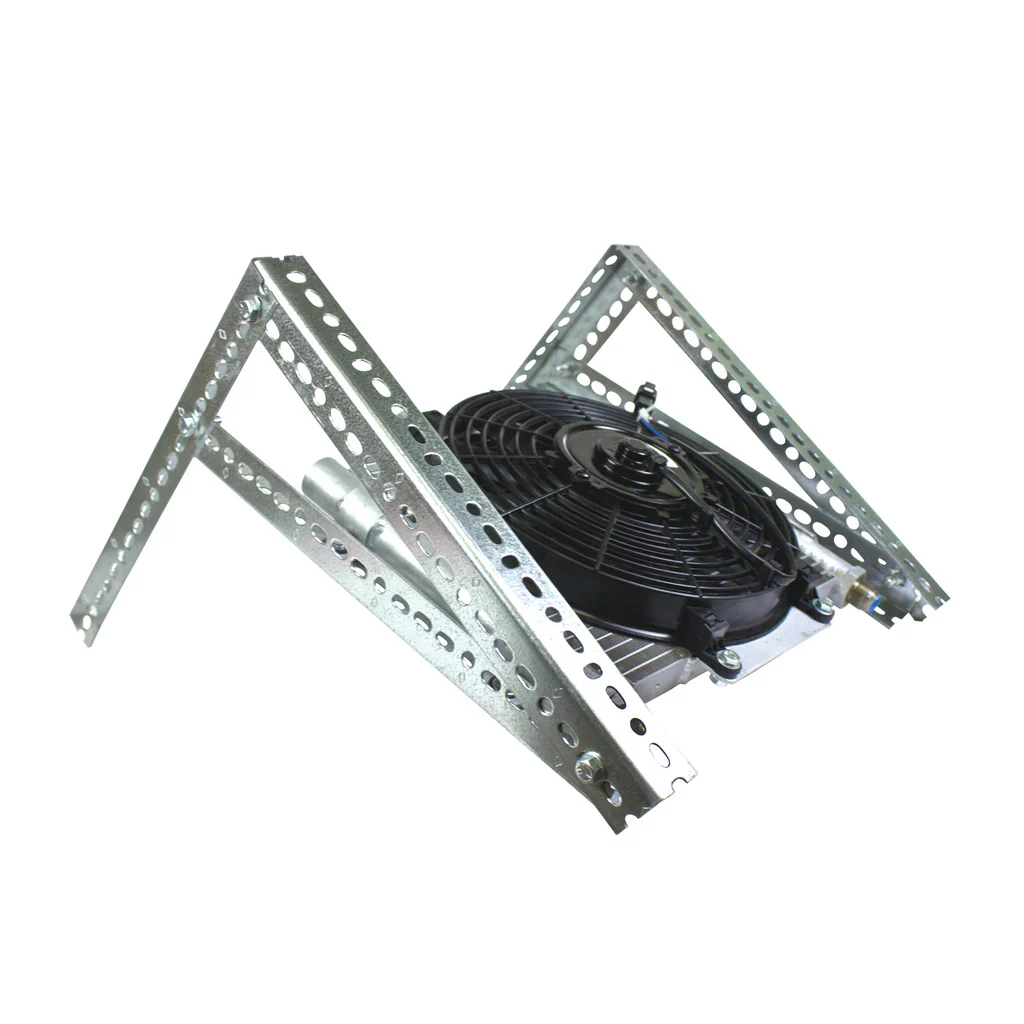

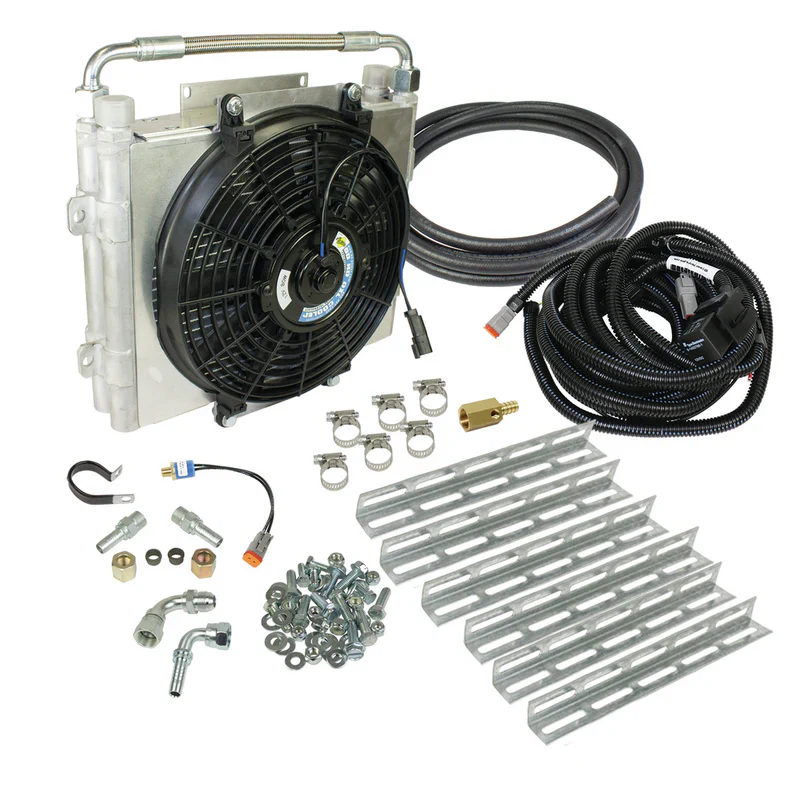

Large 5/8-inch ports prevent inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. Xtruded Double Stacked Transmission Oil Cooler packages are available to accommodate 1/2" and 5/8" transmission cooler lines and come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation, no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist the elements.

Please choose from the options of your transmission oil line size. If you prefer to receive only the cooler itself and no brackets or lines, you may choose the "Cooler Only" option.

Years	Make	Applications	Fitting Tube Size
1993-2026	Dodge	47RH/RE, 48RE, 68RFE	1/2" Tube
2001-2016	GM	Allison 1000	5/8" Tube
2003-2010	Ford	5R110	1/2" Tube
