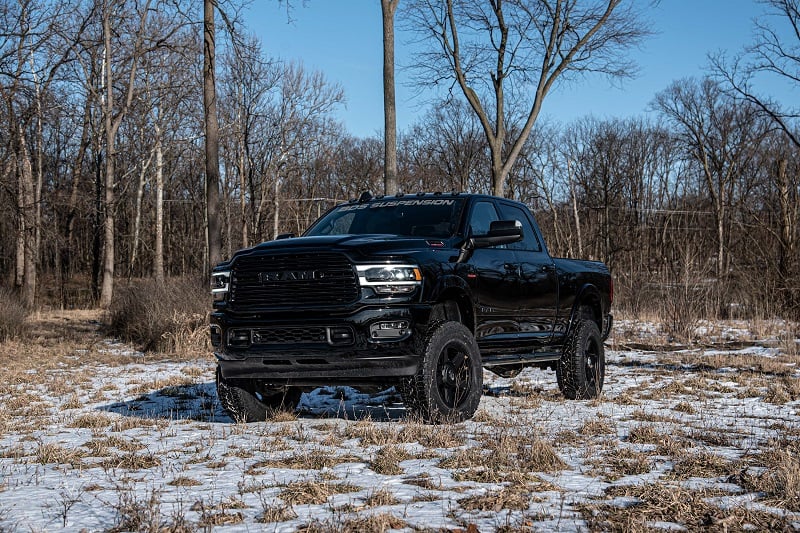

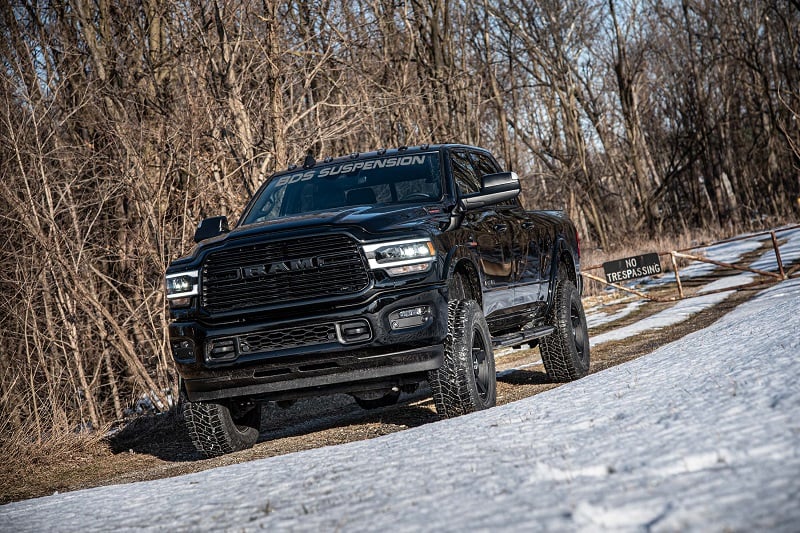

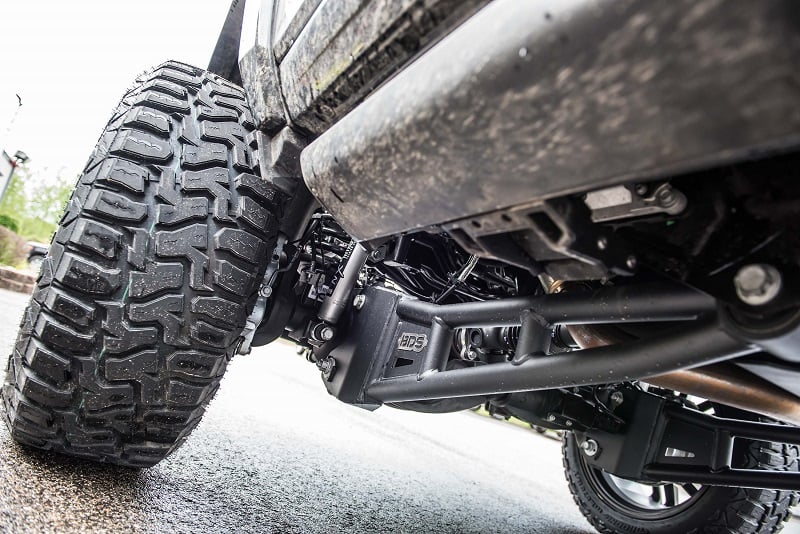

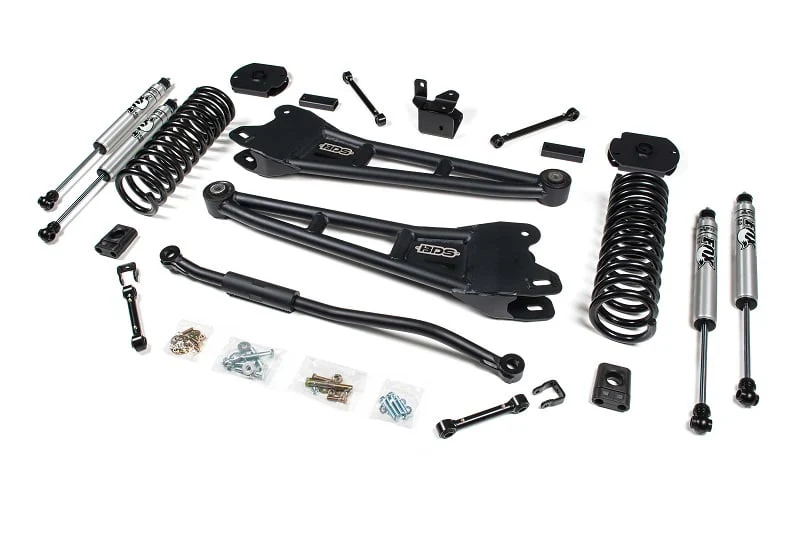

If you're looking for a suspension upgrade for your 2019-2024 Ram, this system from BDS Suspension is built not only to give you additional lift but also additional performance. This BDS 3" Radius Arm Suspension Kit for your Ram is designed and built around a massive tubular radius arm replacement. These arms are built to handle far more than the factory parts they are replacing. Designed with a factory style rubber bushing mount at the frame to keep the NVH (noise, vibration, and harshness) levels in check, you'll immediately notice a difference from your stock parts. The massive 3-1/4" diameter bushings have a maintenance-free service life. For easier installation the radius arms have been designed to mount right into the factory locations. Alignment cam locks are included that allow for caster adjust-ability, something your factory arms do not provide. In addition to adding 3" of lift the radius arms are geometrically set to keep the axle angle in factory specs.

If massive, quality made radius arms are not enough, this system also features dual-rate front coil springs that improve the ride and handling of your 3/4 ton truck both on and off the road. BDS' popular heavy-duty turnbuckle style adjustable track bar is included to center the axle. BDS' greaseable front sway bar links are used to reset the sway bar to the optimum angle and round out the main front components. Add in the front brake line relocation brackets and a choice of BDS NX2-series or FOX 2.0 Performance Series shocks and this system is set to handle any terrain.

The rear system utilizes 1.25" fabricated steel coil spring spacers to level out the stance. A new raised track bar bracket centers up the axle while bump stop extensions and greaseable extended sway bar links (same design as the fronts) round out the rear components.

Shock Options:

Choose between custom valved BDS NX2 Nitro series, FOX 2.0, or FOX 2.5 Performance Elite series gas charged monotube shocks to outfit the front and rear of your Ram.

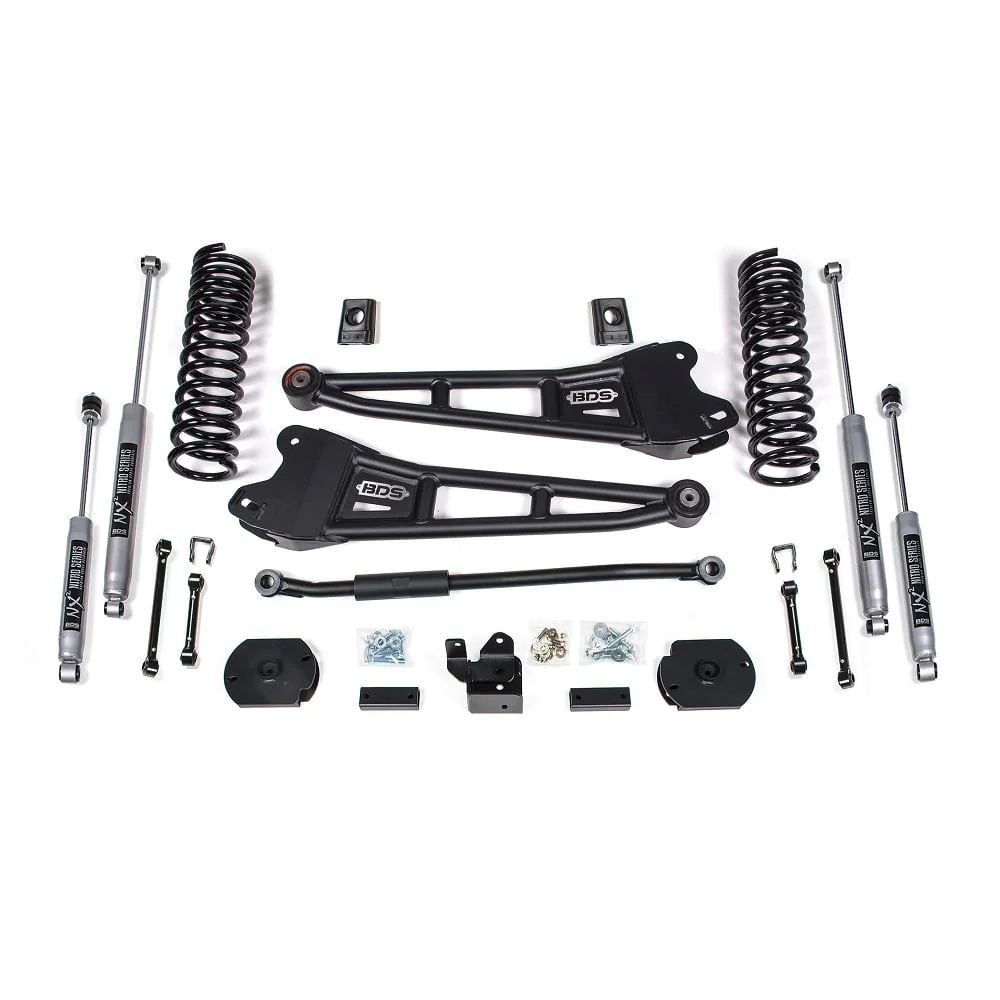

• Nitro Series - BDS NX2 series gas shocks offer impressive performance on and offroad. They use a nitrogen charged, twin tube design with 10-stage velocity sensitive valving for lightning fast dampening and superior control. This results in increased stability for improved handling, longer front end and tire life, less nose dive on severe braking, less squat on hard acceleration, smoother ride control without harshness.

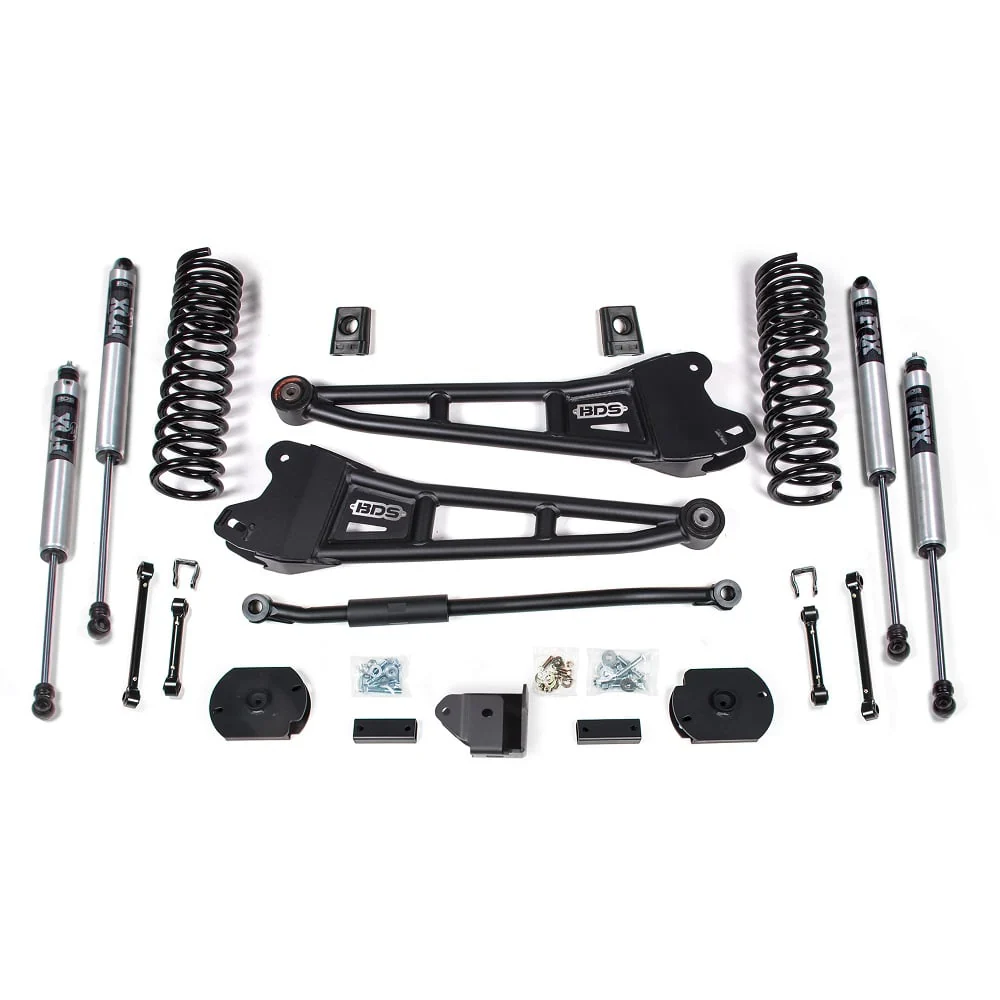

• FOX 2.0 Performance Series - Fox 2.0 performance series shocks have been tuned and tested by both Fox and BDS Suspension to maximize performance specific to each application and to every BDS Suspension system. The basic shock design is based on proven Fox Racing Shox race products, but re-designed to maximize the ride quality, handling, and control of your BDS equipped truck or jeep, whether on or off the road.

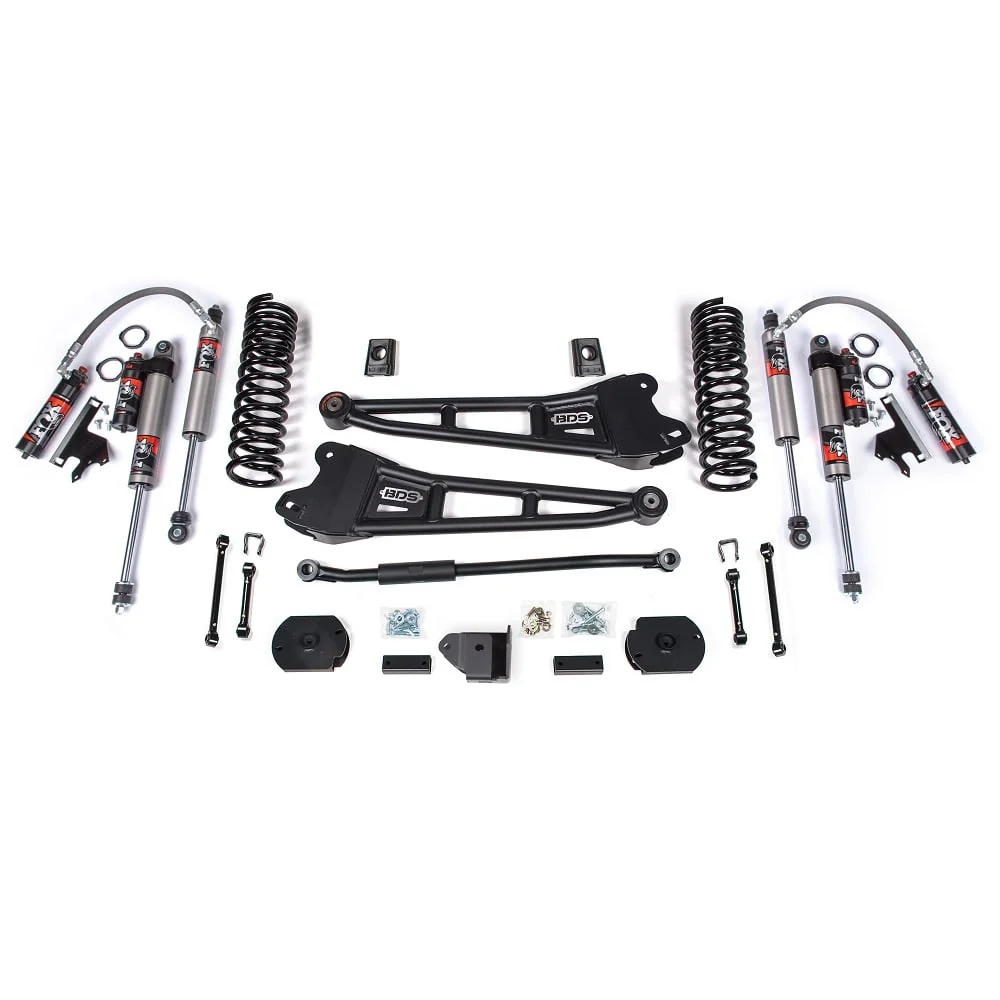

• FOX 2.5 Performance Elite Series - Need to kick your suspension up another notch? The FOX 2.5 Performance Elite Series greatly expands your off-road capabilities and how much punishment your shocks can take. Made with external reservoirs to keep your shock oil away from high stress and higher temperatures, the elite series shocks are part of a suspension that will handle whatever you throw at it. Comes with easy adjustments to switch between different terrains, load and speed. Dual Speed Compression Adjuster comes standard.
