BDS Suspension 6" Radius Arm Lift Kit 19-24 Ram 6.7L Cummins 3500
If you're looking for a suspension upgrade for your 2019+ Ram 3500, this system from BDS Suspension is built not only to give you additional lift but also additional performance. These kits have been engineered for improved on-road comfort and offroad capability. Kits include high strength tubular radius arms, front and rear progressive rate coil springs, your choice of shocks, and steering correction, allowing clearance for up to 37" tires. As with all BDS Suspension systems these new 6" radius arm systems are backed by Factory Protection Plus for peace of mind wherever you choose to explore.

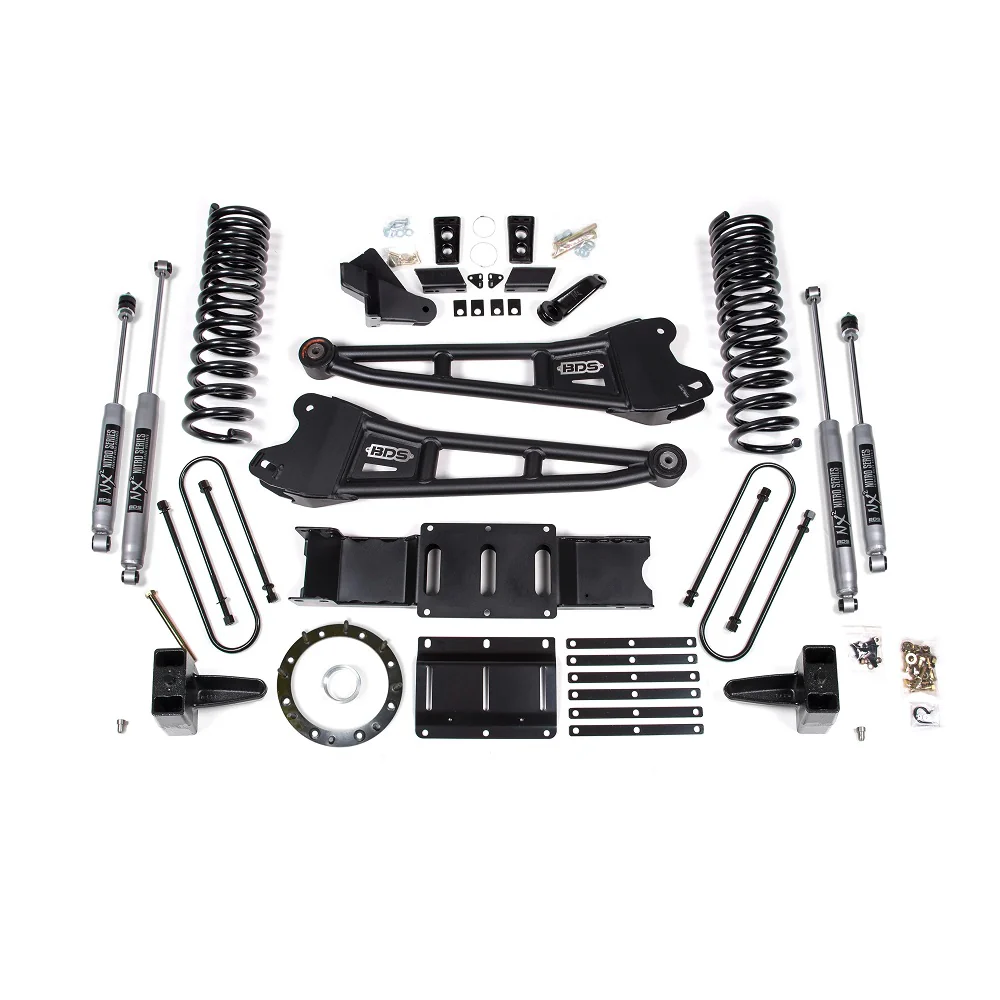

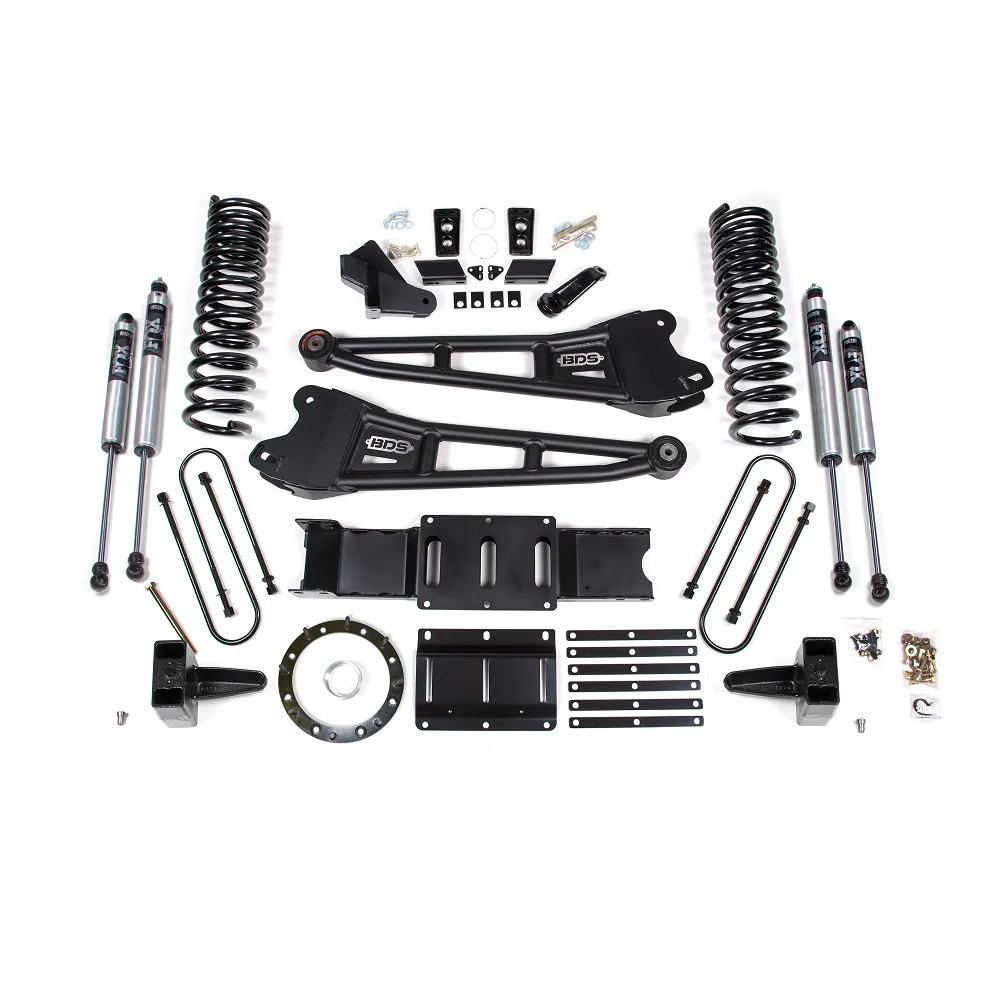

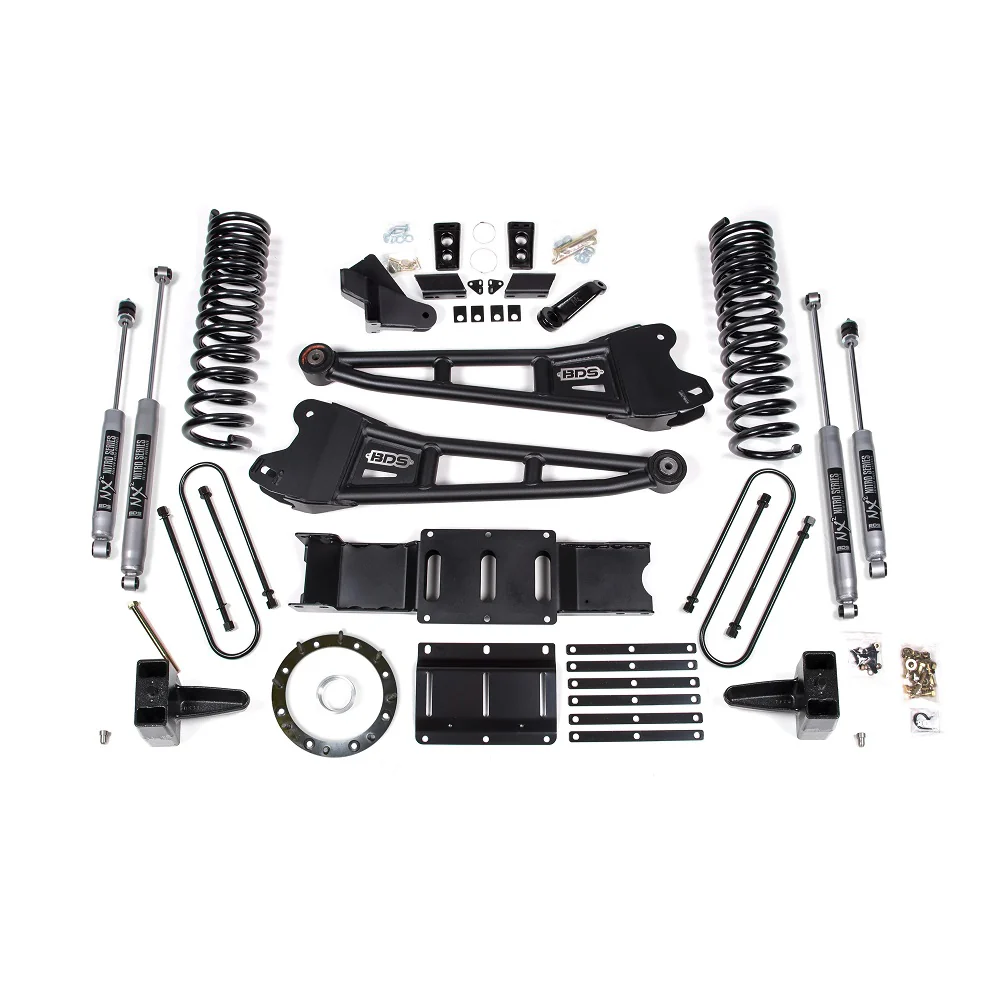

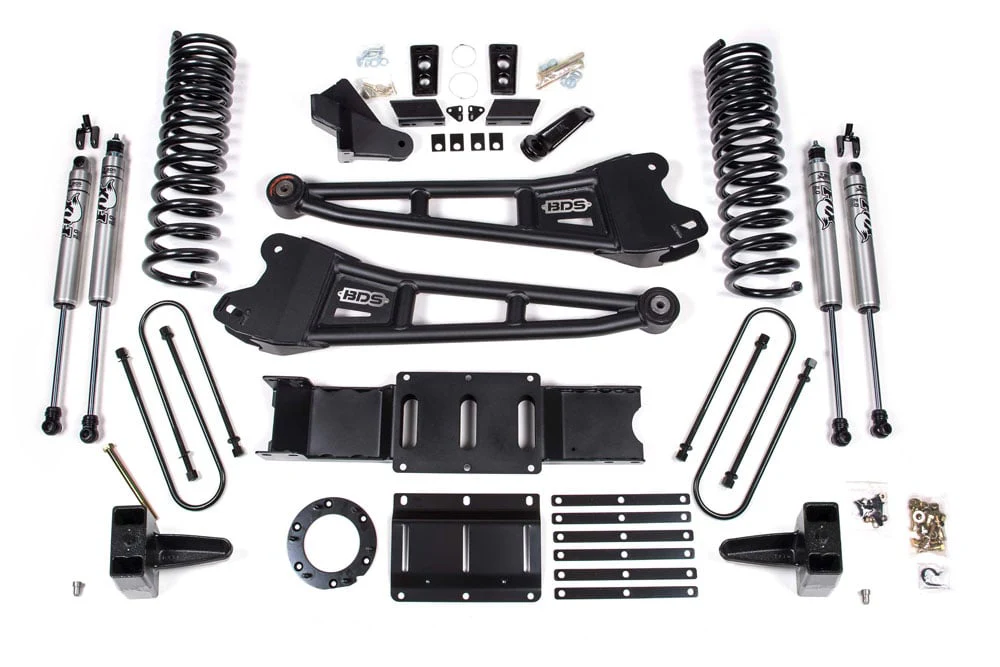

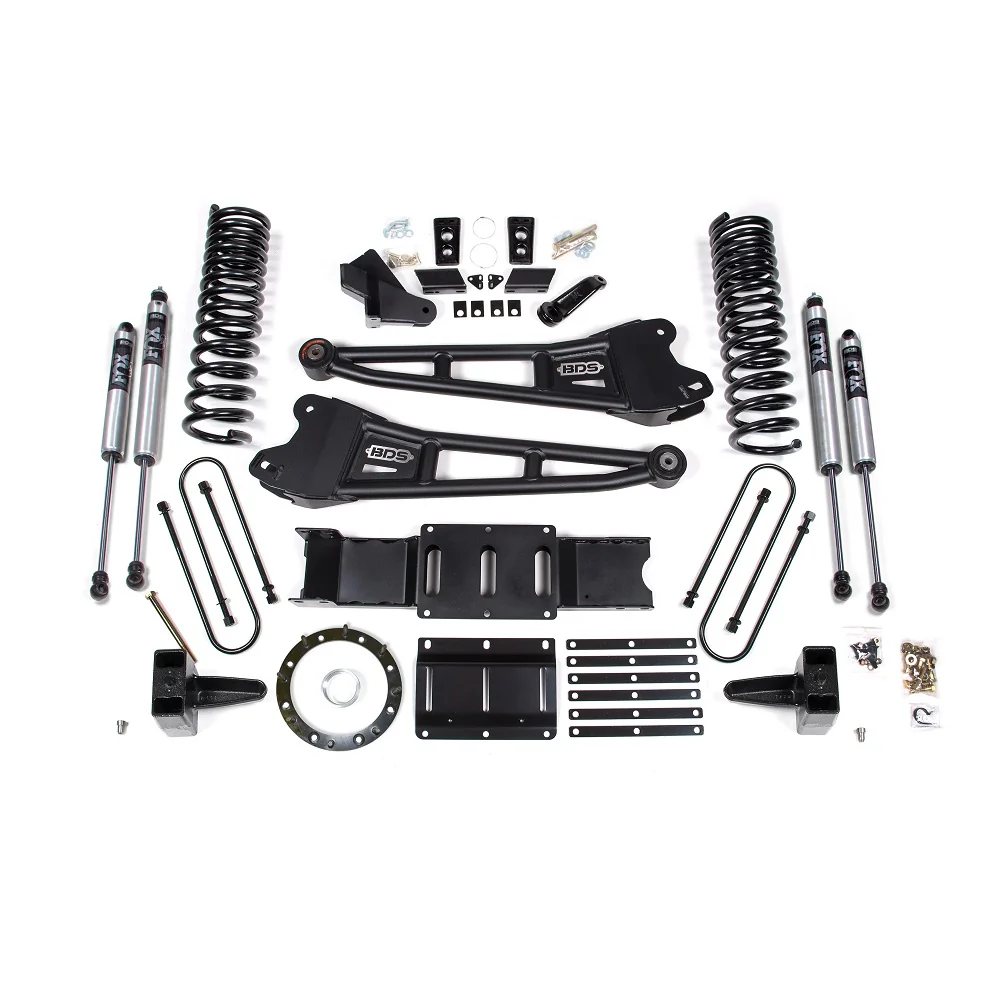

Up front these systems use a pair of (diesel specific) progressive rate 6" coil springs to provide the extra height and smooth controlled performance in the harshest of terrains. A forged drop pitman arm is supplied to correct steering angles along with a HD bar drop bracket to re-center the front axle. A pair of sway bar drop brackets reposition the OE sway bar for optimal performance along with extended polyurethane bump stops to limit up travel and brake line brackets to allow full droop. To correct the front suspension geometry at the new height a pair of heavy duty replacement radius arms that bolt directly into the factory location. These new radius arms are massive upgrade to the factory stamped units, using tubular construction and a lower cam adjustment to dial in front end caster. Also supplied are your choice of BDS NX2 gas shocks or FOX 2.0 performance series IFP gas shocks for improved ride and performance.
At 6" of lift it is critical to correct the front driveline angle to maintain use of the 4WD. To do this BDS Suspension provides a heavy duty replacement transmission crossmember as well as a transfer case indexing ring to reposition the front driveline output to allow use of the factory drivelines. BDS offers these indexing rings for both the 6-bolt and 8-bolt equipped trucks. In the rear of the RAM 3500 kits a 5" block and u-bolt kit is used for a level-to-slightly tail-high stance while maintaing tow capacity. Finishing out the rear are a matching set of BDS NX2 gas shocks or FOX 2.0 performance series IFP gas shocks.
As with all BDS Suspension kits these include Factory Protection Plus for a limited lifetime warranty, ESC System compatibility, and 5-year, 100,000-mile drivetrain warranty. Get the look and the ride you are after with these 6" radius arm systems from BDS Suspension.
Shock Options:
Choose between custom valved BDS NX2 series or Fox 2.0 series gas charged monotube shocks to outfit the front and rear of your Ram.
BDS NX2 Nitro Series - BDS NX2 series gas shocks offer impressive performance on and offroad. They use a nitrogen charged, twin tube design with 10-stage velocity sensitive valving for lightning fast dampening and superior control.
This results in: increased stability for improved handling, longer front end and tire life, less nose dive on severe braking, less squat on hard acceleration, smoother ride control without harshness.
FOX 2.0 Series - FOX 2.0 performance series shocks have been tuned and tested by both Fox and BDS Suspension to maximize performance specific to each application and to every BDS Suspension system. The basic shock design is based on proven Fox Racing Shox race products, but re-designed to maximize the ride quality, handling, and control of your BDS equipped truck or jeep, whether on or off the road.
Steering Stabilizer Options:
- Single NX2 Nitro: Are you worried about your steering control? NX2 Nitro Steering Stabilizer is designed to be a high-end performance shock at an affordable price. Built with a durable metallic finish, a large fluon-banded piston, and self-lubricating seals this stabilizer is tough enough to last but tuned with vehicle-specific valving to give you amazing control. Built with both the morning commute and some light off-roading in mind, keep stress out of your steer and install one of these today!
-
Dual NX2 Nitro Series: Is one not enough? Then upgrade to a dual steering stabilizer setup which gives further enhanced vehicle control and lessens side-to-side motion to a greater effect. Heavy off-roading requires a heavy suspension that can handle it but can still be smooth on asphalt.
- Dual FOX 2.0 Performance Series: Taking things even further is the dual FOX 2.0 setup. Built to last from the top up this performance setup will enhance control, reduce shimmy and bump steer, and improve tire wear and front-end component life. Protect your investment and smooth out your rough spots before they leave you figuratively hanging.
Recoil Traction Bar Kit
Increase your traction and stability without limiting your movement with this BDS Recoil Traction Bar Kit. When your truck is in high torque situations, you need extra help absorbing shocks or vibrations through your system. Install these traction bars to smooth out your ride, increase stability while off-roading, and increase durability throughout your truck.
Carrier Bearing Drop Kit
A 2-piece rear drive shaft will require some extra work as the geometry of your drive system will now have some added stress. We recommend adding this carrier bearing drop to avoid any potential driveline vibration with the added lift height.
