Take your RAM 3500 to new heights with this 6.5" radius arm suspension lift kit from Zone Offroad. Engineered for strength, proper suspension geometry, and reliable performance, this system includes everything needed to lift and level your truck—minus shocks—while maintaining ride quality and drivability.

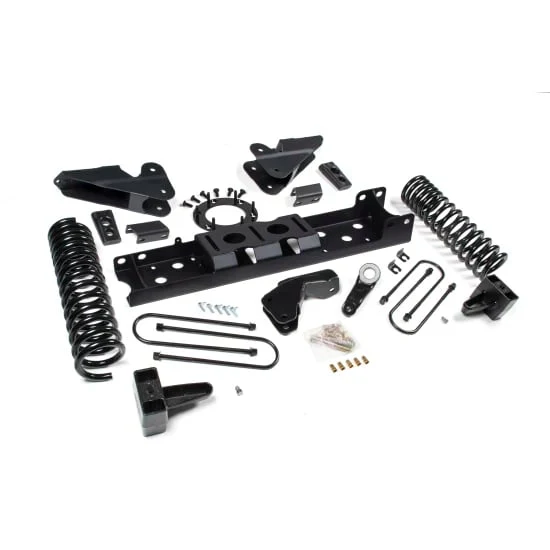

This kit features high-strength progressive-rate front coil springs combined with heavy-duty 1/4" steel, laser-cut, internally gusseted radius arm drop brackets to correct caster and improve ground clearance. Steering geometry is addressed with a forged drop pitman arm and a heavy-duty track bar relocation bracket, while front sway bar correction maintains stable handling characteristics.

A heavy-duty transmission crossmember and transfer case indexing ring (variant dependent) help correct front driveline angles after lifting. With no change to factory track width, this system provides clearance for up to 37" tires, delivering an aggressive stance without sacrificing control.

Note: Shocks are not included. Aftermarket shocks are required for proper installation and performance.

Vehicle Fitment

• 2019–2024 Ram 3500 4WD Diesel
• Available for trucks with or without rear overload springs (variant dependent)
• Available with 6-bolt or 8-bolt transfer case indexing ring options (variant dependent)

Important Notes

• Shocks not included
• Diesel models only
• Will not fit rear air-ride equipped models
• Does not fit Chassis Cab models
• Does not fit vehicles with a manual shift transfer case
• Trucks equipped with a 2-piece rear driveshaft require carrier bearing shim kit D5406 (not included)
• Some 8-bolt Mega Cab models may require an aftermarket front driveshaft and may not use indexing
