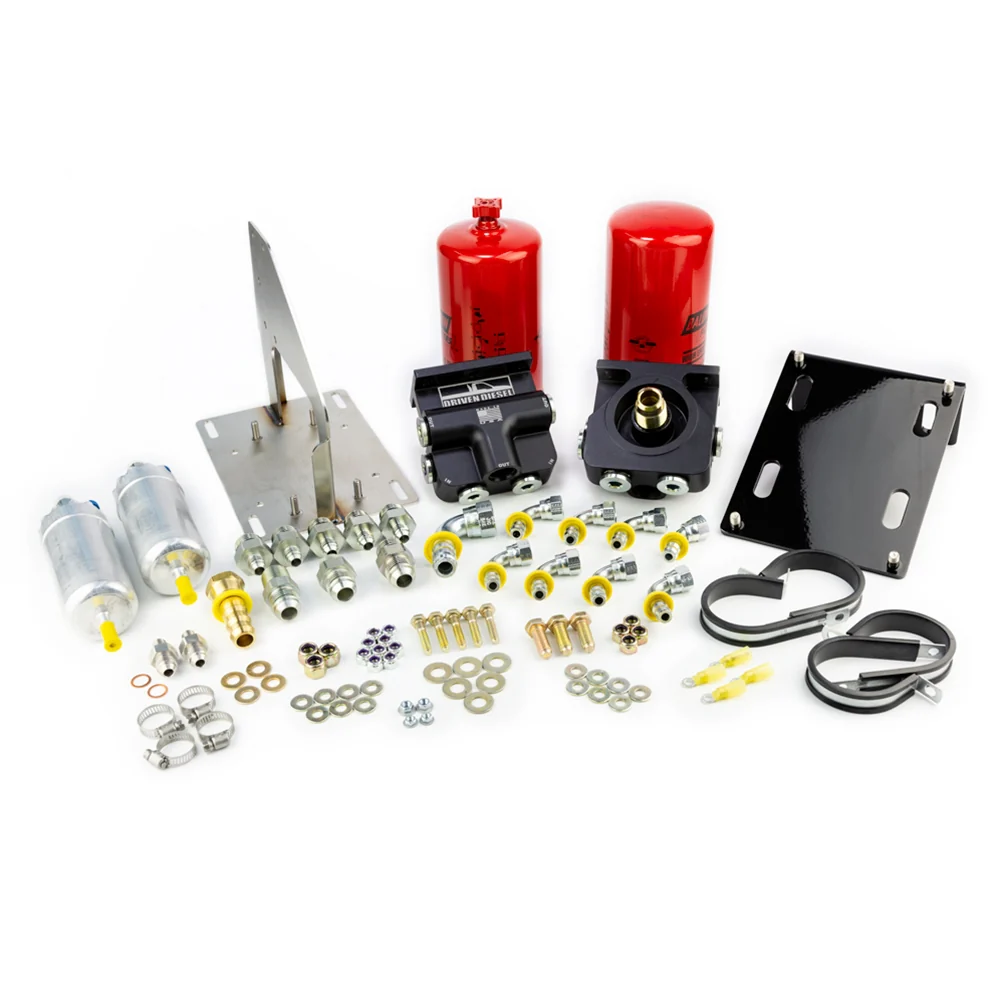

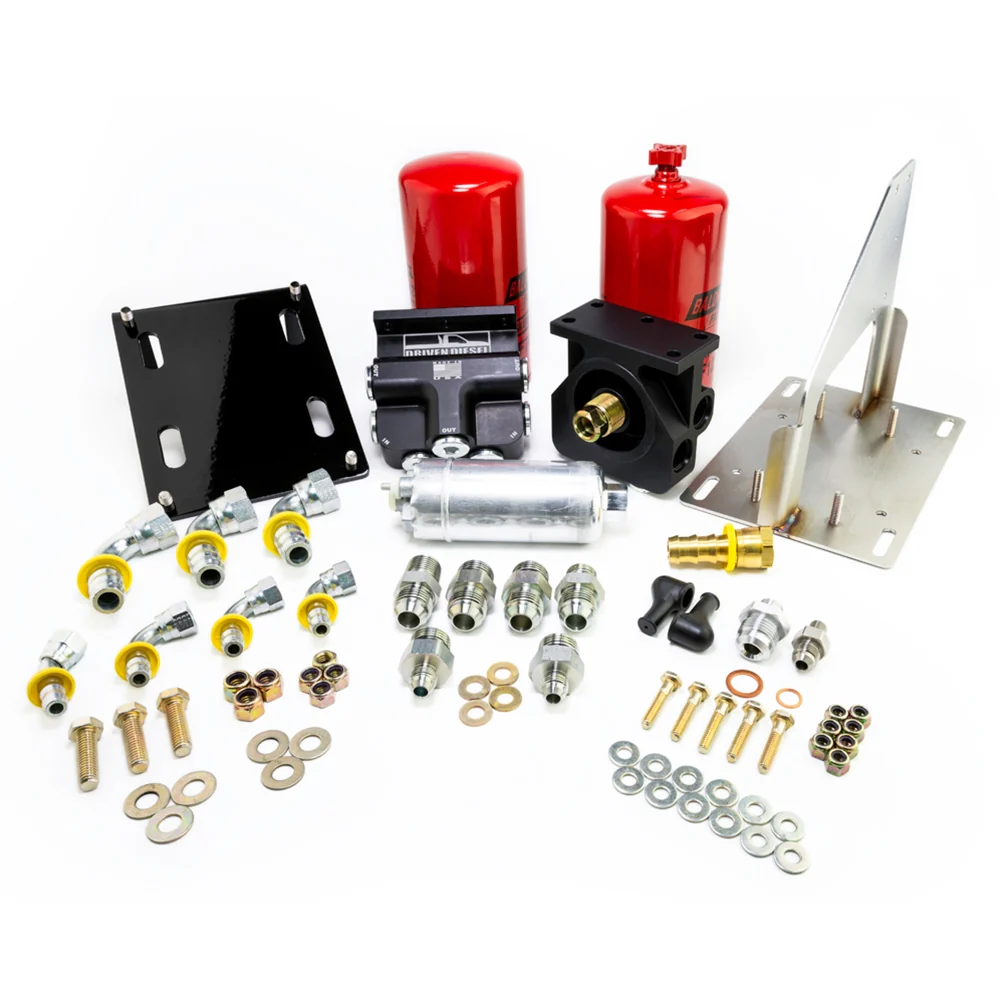

Is your Powerstroke in need of SERIOUS fueling? Then look no further than this Fuel Delivery Kit from the professionals at Driven Diesel. Designed to work in conjunction with one of Driven Diesel's Fuel Bowl Delete Regulated Return Kits, this will deliver enough fueling for nearly any horsepower and fueling level. Plus, these kits have the the ability to us a FASS Electric Fuel Heater.

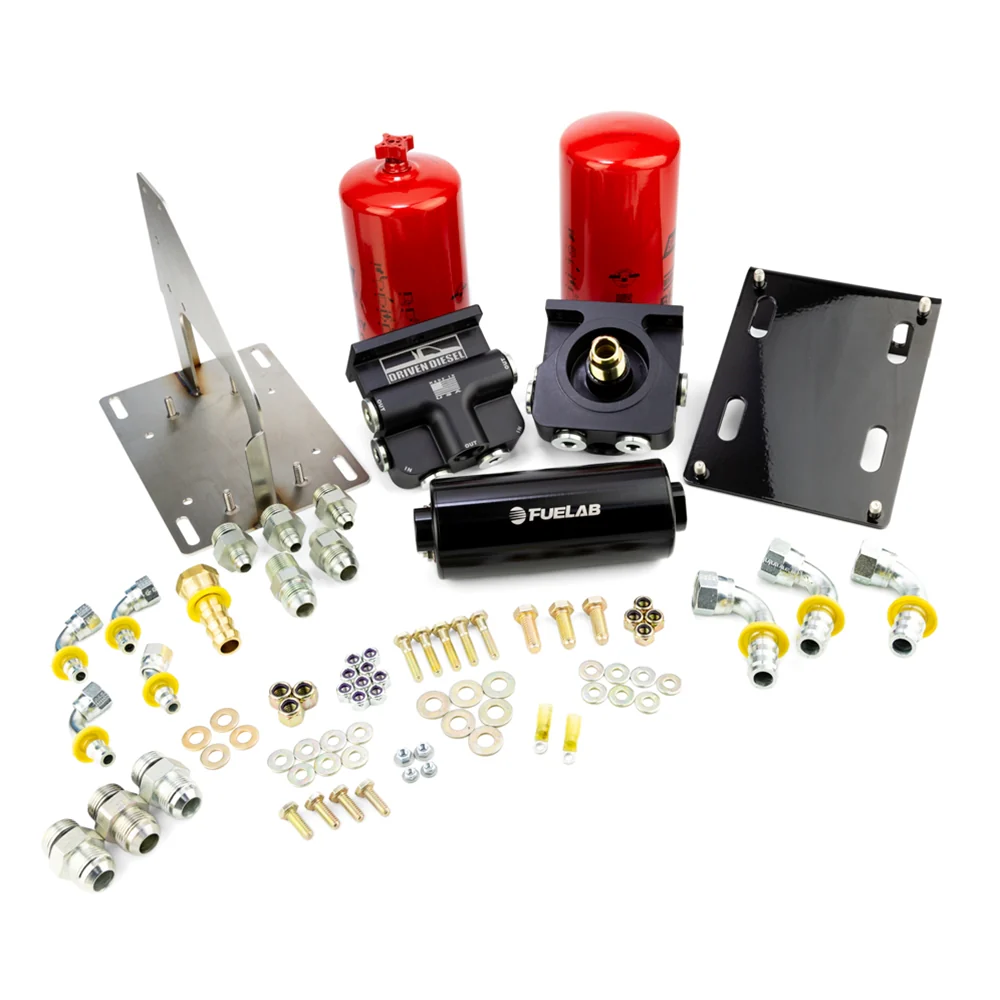

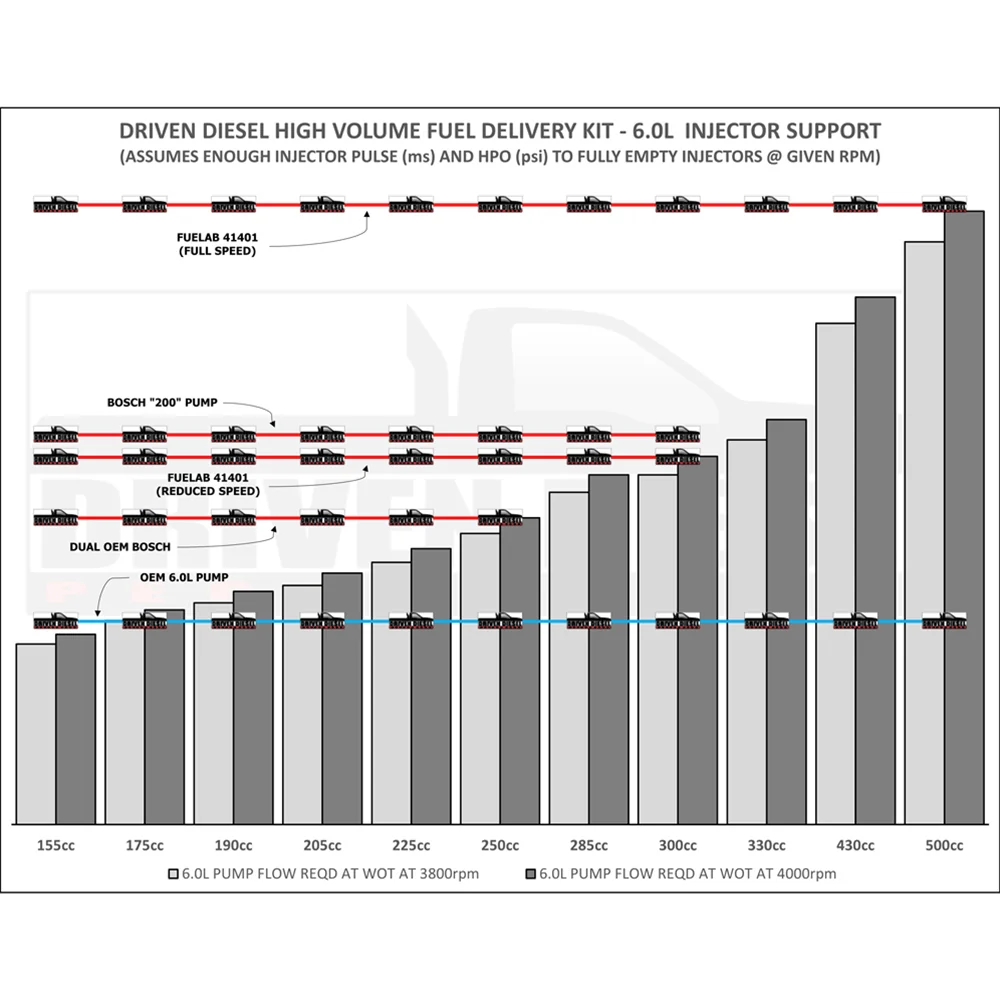

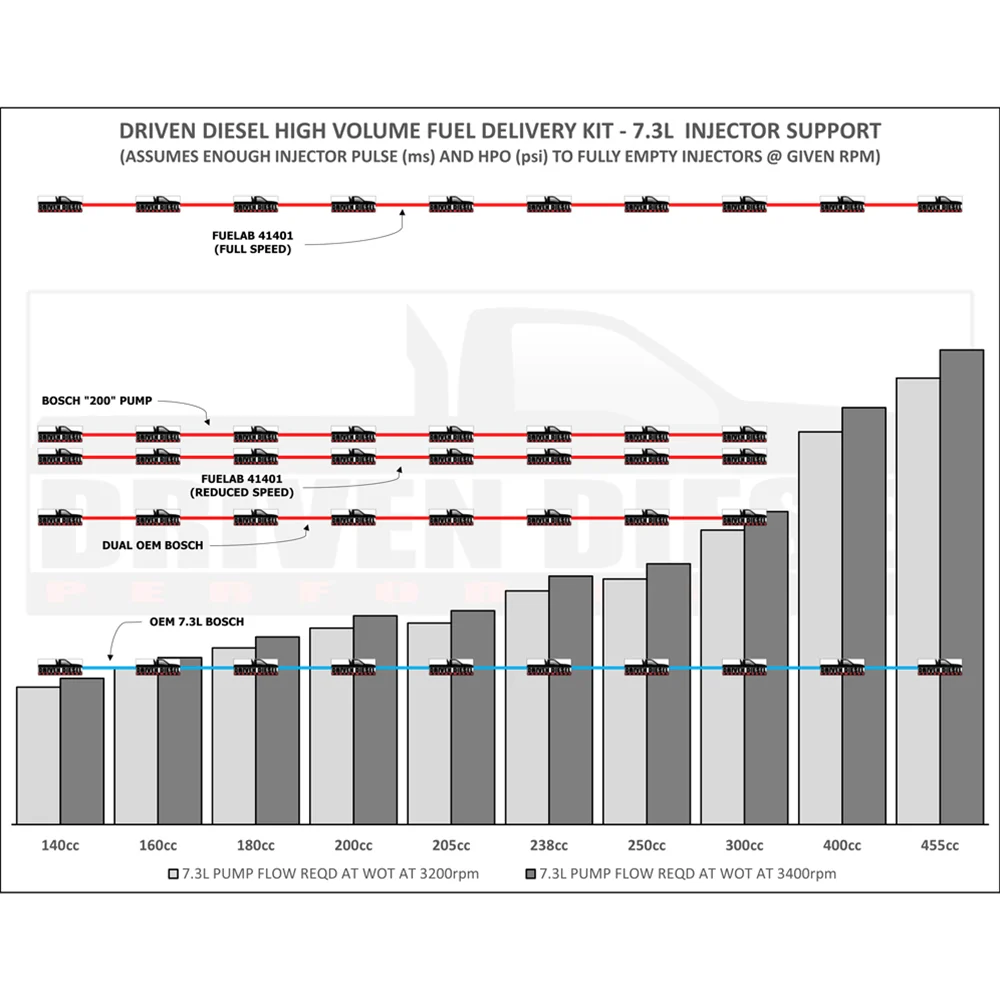

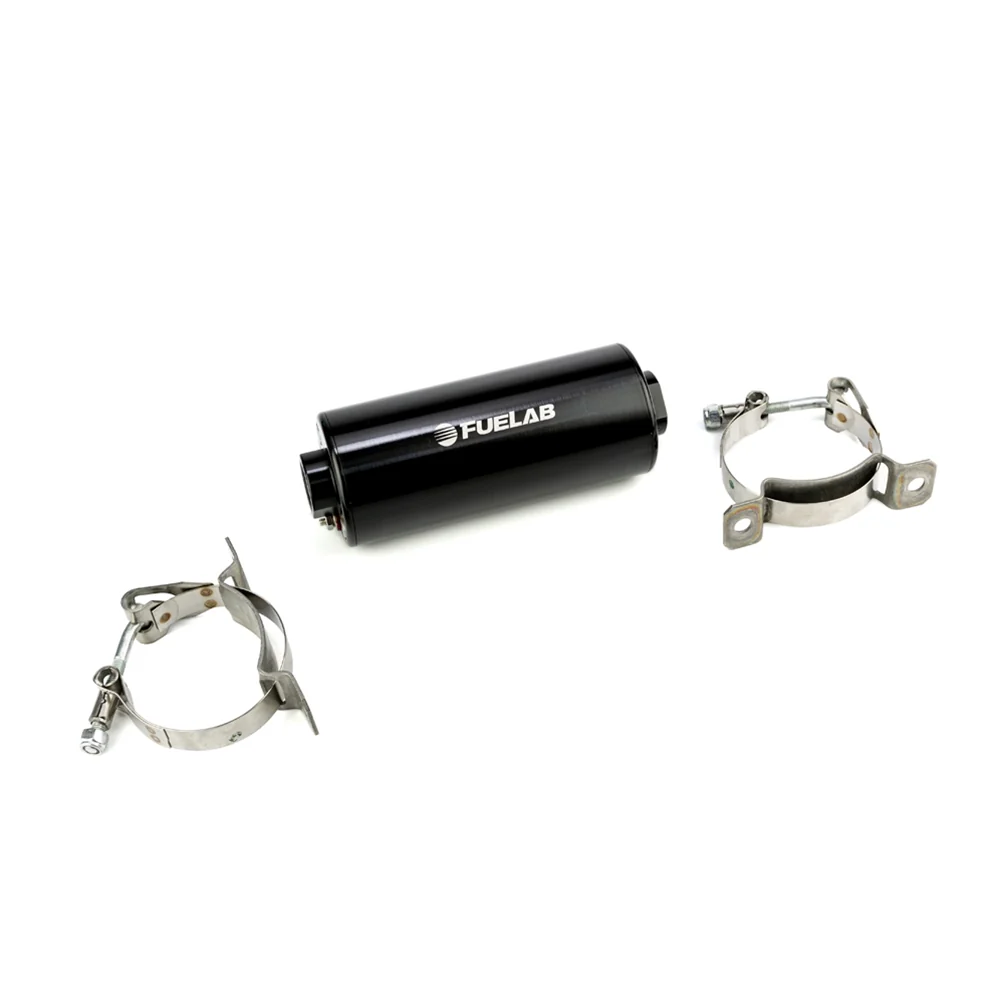

Choose between Fuelab, Bosch 200, or Dual Bosch Pumps to make sure your Powerstroke gets the fuel it needs!

All Driven Diesel's High Volume Fuel Delivery Kits are now tank connection universal. What that means is that the tank connection is NOT INCLUDED (5/8" PICKUP, SUMP, ETC)

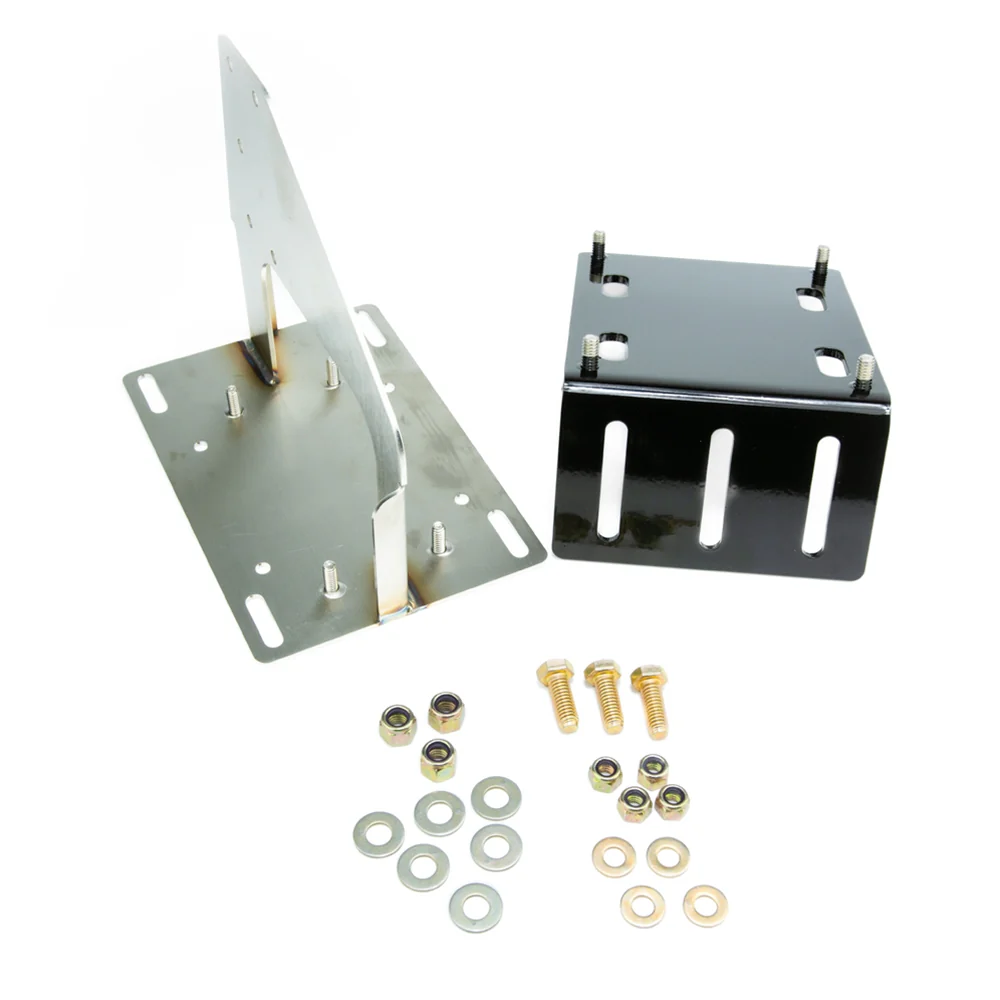

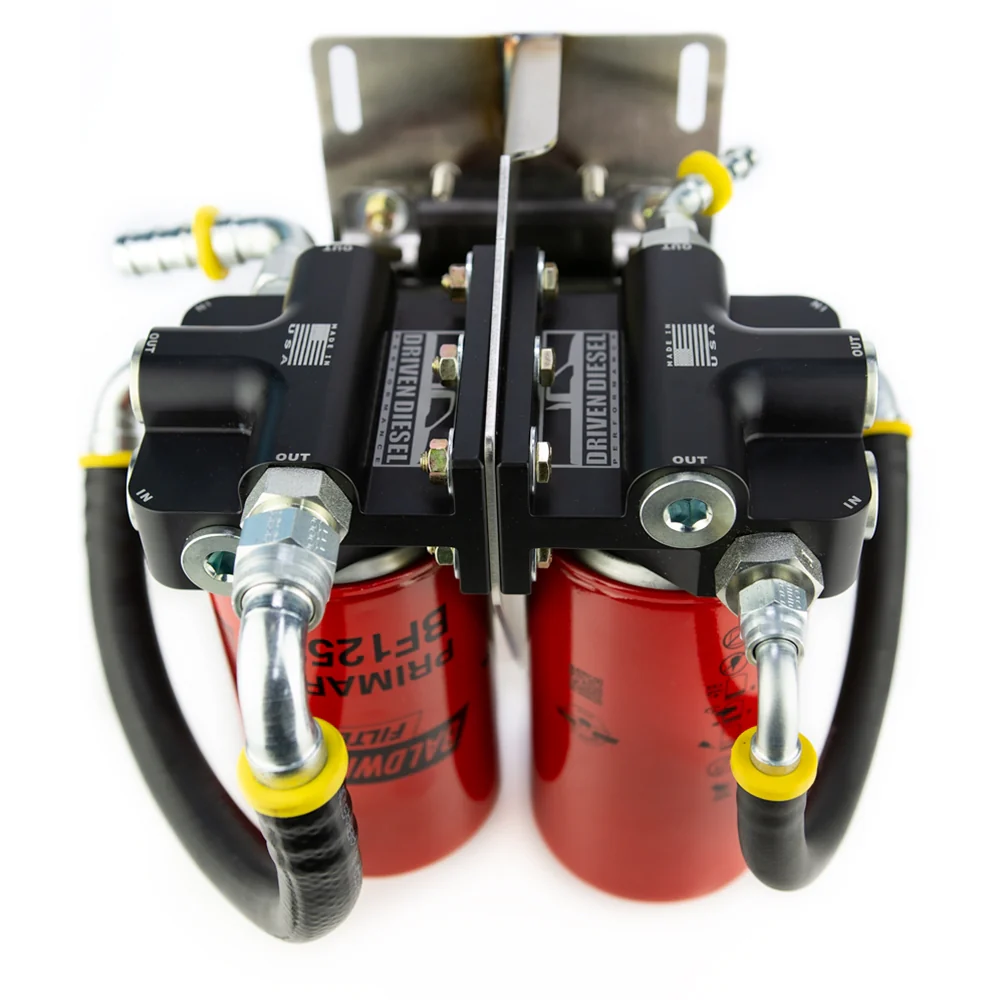

This kit was designed to mount INSIDE the frame rail, forward of the stock fuel tank. The fully assembled pump bracket requires about 13-15" of straight frame space to allow for the inlet and outlet hoses to route cleanly. If you have a short wheelbase truck or you have other equipment already mounted in the area forward of the fuel tank, you may want to measure and verify that you have room before ordering. Also, this bracket can be mounted on the outside of the frame rail if needed, but care will need to be taken with regard to the parking brake cable and fuel line routing. All of the pictures in the instructions show a system plumbed for INSIDE the frame mounting.

* IMPORTANT NOTE : This kit was designed to work with the Driven Diesel "Fuel Bowl Delete" Regulated Return Kits. As such, it does NOT include the proper fittings to supply fuel to the factory fuel filter bowl. The kit includes standard #6AN fittings for making the connection to the fuel inlet at the engine. This will mate up perfectly with their 7.3L Fuel Bowl Delete Kits (available now) as well as the 6.0L Fuel Bowl Delete Kit. If you are not using one of Driven Diesel's Fuel Bowl Delete Regulated Return Kits, you may need to supply additional fittings to make the proper connection to your fuel system.
