S&B 45 Gallon Replacement Fuel Tank 19-22 2.1/3.0L Mercedes Sprinter 144/170" Wheelbase
The 2019+ Sprinter Van has become one of the most popular platforms for adventures of all types. Sprinter Van owners outfit these vans for camping, overlanding, and exploring. One thing that these vans are lacking, fuel capacity. The factory 24 gallon tank may be able to get you into a hard to reach spot but good luck having enough fuel to get out. This drop in replacement 45 gallon tank will almost double the fuel capacity of your Sprinter Van. This tank will also work in 2020-2022 Winnebago Navion, 2020-2022 Winnebago View, 2020-2022 Storyteller Classic Mode 4x4, 2021-2022 Storyteller Stealth Mode 4x4, 2020-2022 Storyteller Beast Mode 4x4, and a 2022 Pleasure-Way Rekon 4x4.
FITMENT NOTE- This tank will NOT fit:
- 144” Dually Vans
- 170” Crew Vans (1 row of seats)
- Vans with plumbing/items 24 inches from the rear end of the OEM tank or 19 inches from the rear end of the large rear cross-member.
- Storyteller XO
PLUG AND PLAY INSTALLATION

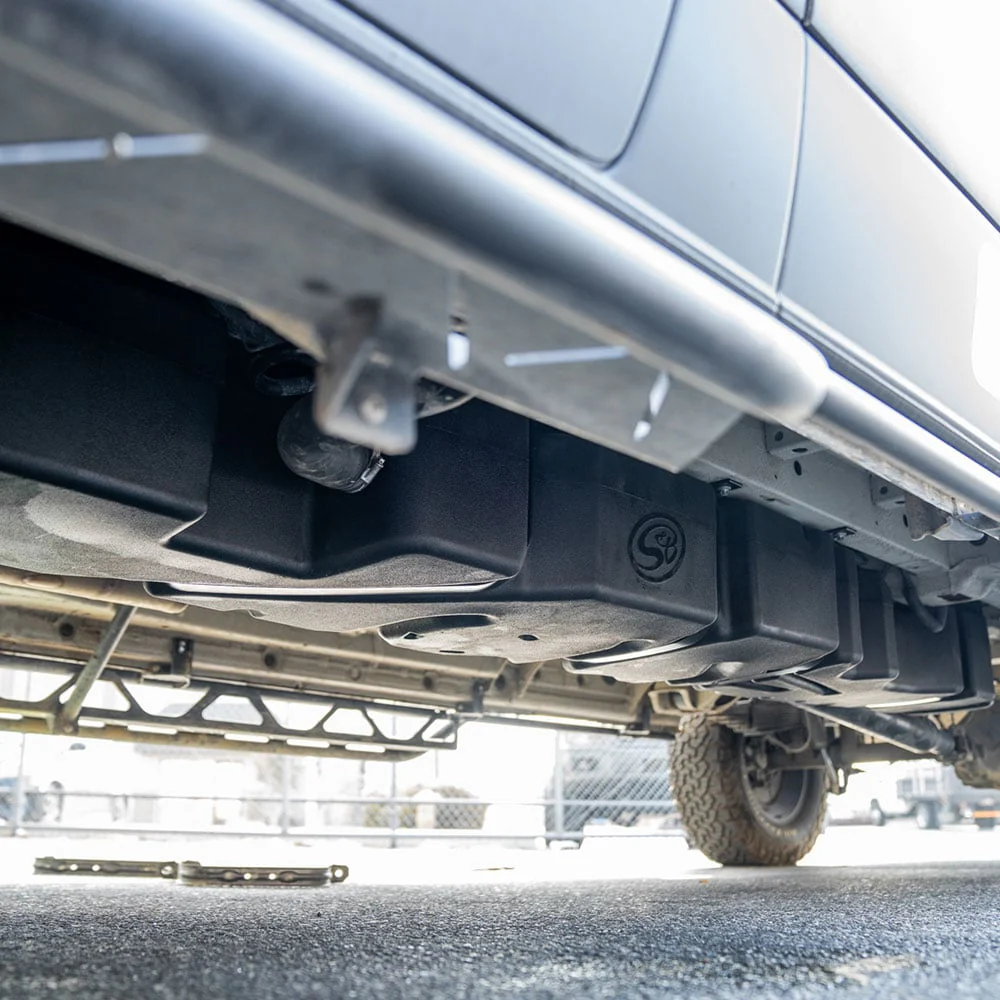

The S&B Tank comes with all the components to remove your 24 gallon tank and replace it with our 45 gallon tank. The tank mounts in the stock location with an additional rear strap. The tank occupies the space forward and rearward of the original tank and does not stick out anymore toward the driver side than the original tank.
YOUR FUEL GAUGE
The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). Please call your Mercedes dealer to confirm if you have this option.
BUILT TO LAST AND BACKED BY A LIFETIME WARRANTY

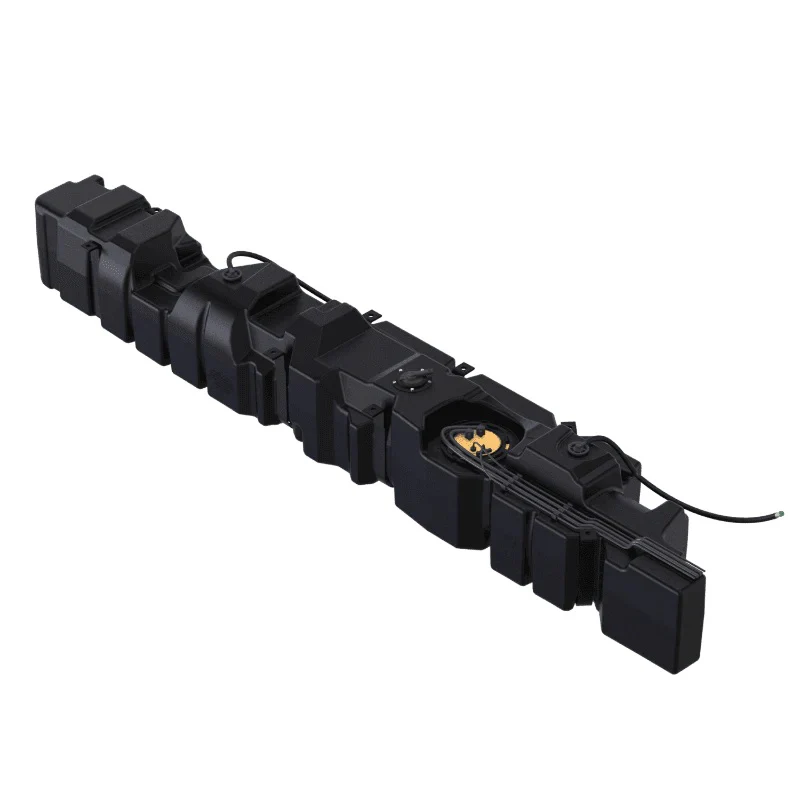

Made out of 1/4" thick crosslink polyethylene, these tanks are built to last and are backed by our lifetime warranty.
WARNING FOR THOSE USING AUXILIARY FUEL TANKS
On S&B and OEM diesel fuel tanks, there are one or more rollover valves. The rollover valve uses a float/weight to close the valve when the float is immersed in fuel. This prevents fuel leakage in the event of a rollover. Gravity feed tanks or electronically controlled feed tanks can overfill the S&B or OEM tank. If/when the tank is overfilled, the rollover valves will prematurely close. Without the required vapor space in the tank, this violates the “overfill restriction” requirement of 49 CFR 393.76(12)(i). An overfilled tank can lead to a pressurized fuel tank, leaking, and tank failure.Therefore, the use of a gravity feed tank or electronically controlled transfer tanks (that allow the S&B tank to overfill) in conjunction with a S&B Tank is dangerous and will void the S&B Tank warranty.
